WL006 - Watts Link, Rod End/Rod End

$810.00
Shipping calculated at checkout.
Color:

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Highlight title

Text to highlight a key feature of your product

Description

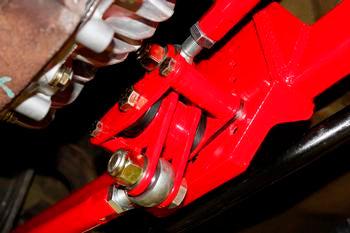

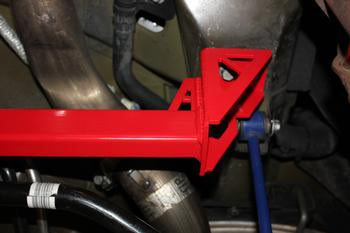

A Watts link locates the rearend housing and eliminates lateral axle movement by keeping the differential perfectly centered under the car through the suspension’s entire range of motion. Add the ultimate lateral differential location device to your S197 Mustang with a Body-Mounted Rod End/Rod End Watts Link from BMR Suspension. Manufactured from heavy-duty 1x2-inch, 0.120-inch rectangular steel tubing and 1/4-inch laser-cut steel plate, BMR’s Watts link (WL006) is the ultimate in strength. The axle mounts are built from heavy-duty 3/16-inch laser-cut, CNC-formed steel plate. Double shear link mounts connect the adjustable links to the center pivot. These mounts give you tons of strength and zero deflection. Other companies take the easy route, sacrificing strength with single shear mounts. BMR’s center pivot is fabricated from ¼-inch laser-cut plate steel with 1 5/8-inch DOM steel tubing. It uses a double shear mount to the crossmember with a greasable Delrin bushing for smooth, bind-free movement. The links are built from heavy-duty aluminum with left and right hand threaded 5/8-inch rod ends for easy on-car adjustability. The WL006 features zinc-plated, X-series, heat-treated, chrome-moly, self-lubricating, Teflon-lined rod ends and 95-durometer polyurethane bushings. It also features 304 stainless steel, custom designed rod end spacers.

BMR Suspension designed the WL006 to work well for street performance and handling applications. The WL006 is 100-percent bolt-in and requires no cutting or modifying of the S197 chassis. The Watts link is adjustable, allowing for fine-tuning and the bind-free suspension articulation needed for superior handling. The center pivot can be installed in any of the six positions for multiple roll center locations. The WL006’s heavy-duty construction will hold up to the most extreme conditions on the track or street, greatly improving the handling capabilities of your S197. With strength, adjustability, and zero lateral axle movement, this is the perfect upgrade for the enthusiast that requires maximum performance from their suspension. When performance is a must, rely on BMR Suspension!

BMR Suspension’s WL006 Body Mounted Watts Link is available in black hammertone and red powdercoat for long-lasting good looks. Installation time is 3-4 hours. Proudly made in the U.S.A.

*NOTE: Cars that are lowered more than 1.5" in the rear, and/or have "soft" spring rates may need to trim the driver side Axle Mount bracket. If you have any questions, please call us at 813-986-9302.
