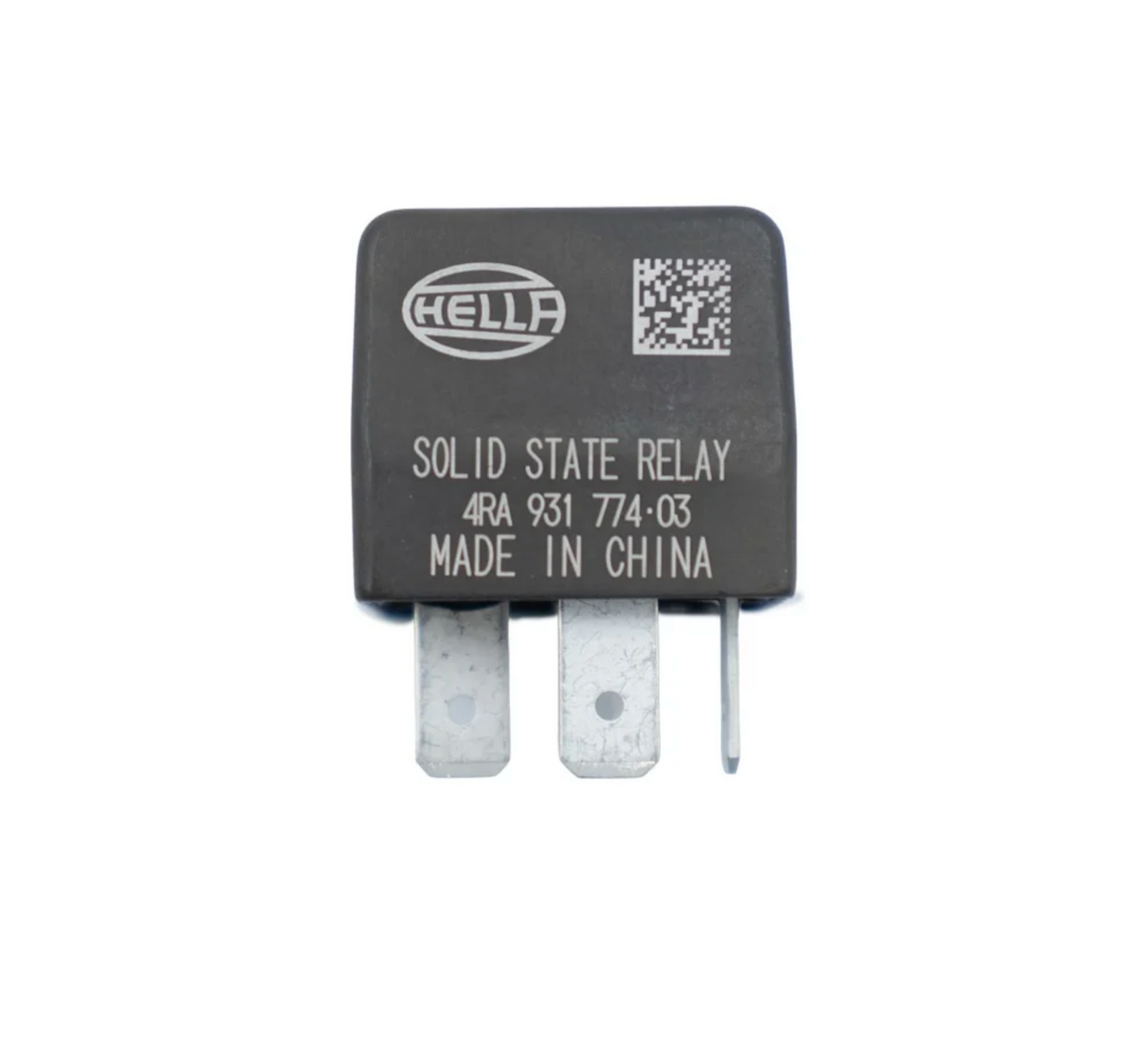

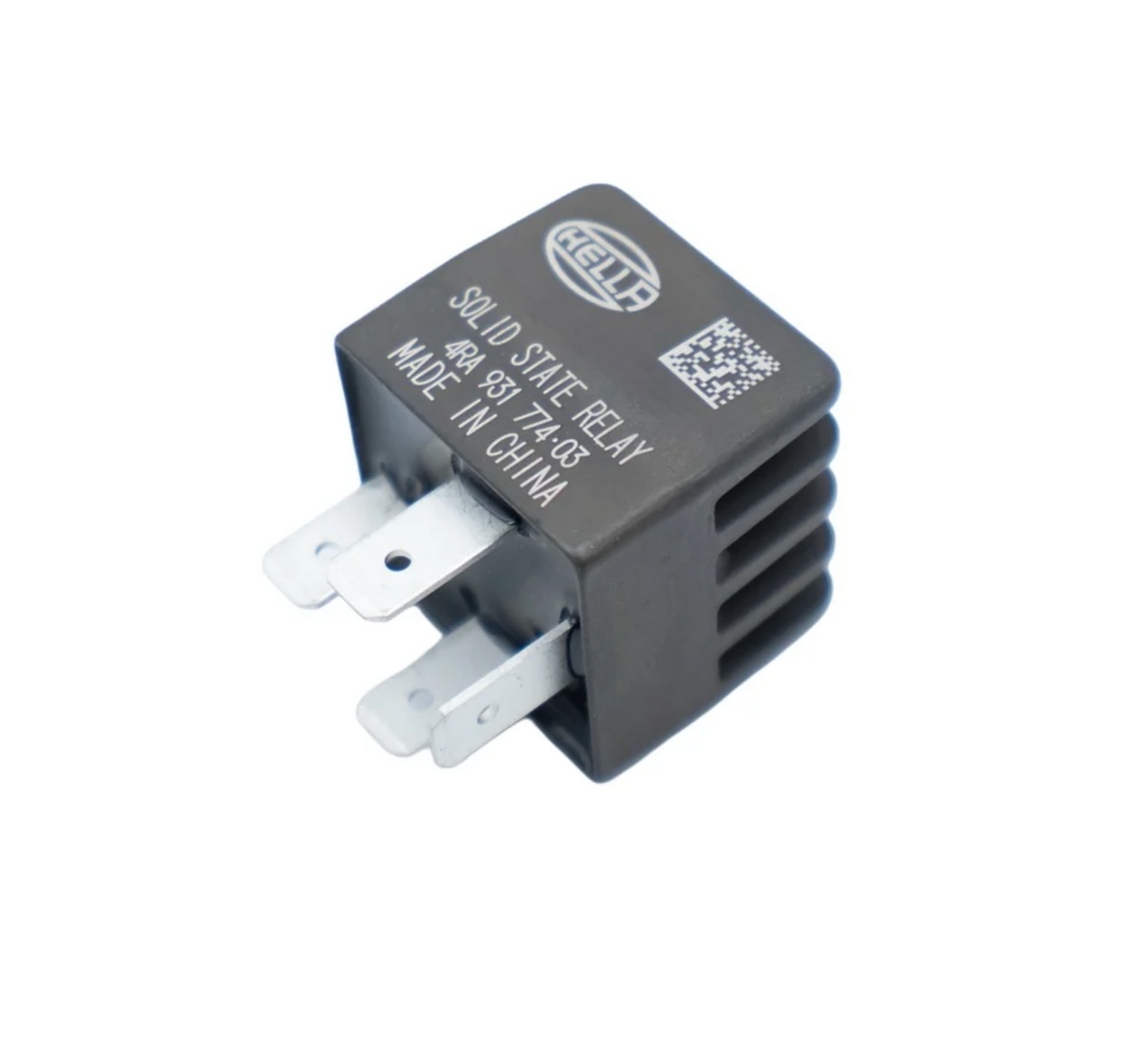

STAGING / BRAKE CONTROL SOLID STATE RELAY
From
$119.00
Unit price
/
Unavailable
Description
Description
This relay can be used for the following:
- FT600 / FT550 / FT500 / FT500LITE / FT450 built-in Staging Control
- FT600 / FT550 / FT500 / FT500LITE / FT450 built-in Brake Control
Fast switching speed which is perfect for PWM control and for use as a normal relay. No mechanical parts inside. Silent operation.
- 12V Solid State Relay
- Max Current: 20A
- PWM frequency: 0-1000Hz
Dimensions (L x W x H): 27mm x 27mm x 26mm (1.07in x 1.07in x 1.02in)
Weight: 30g
ELECTRICAL CONNECTIONS:
- 30 - Switched 12V - Use fuse
- 85 - Not connected
- 86 - Trigger - FT auxiliary output (activated when switched to ground)
- 87 - Output for load - Normally Open contact - 20A:
