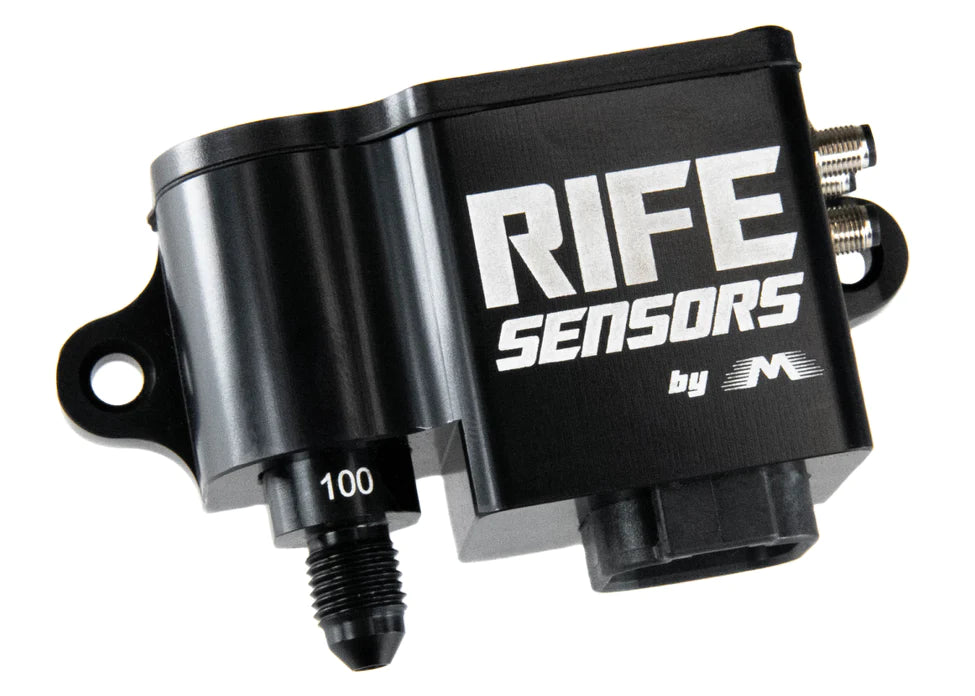

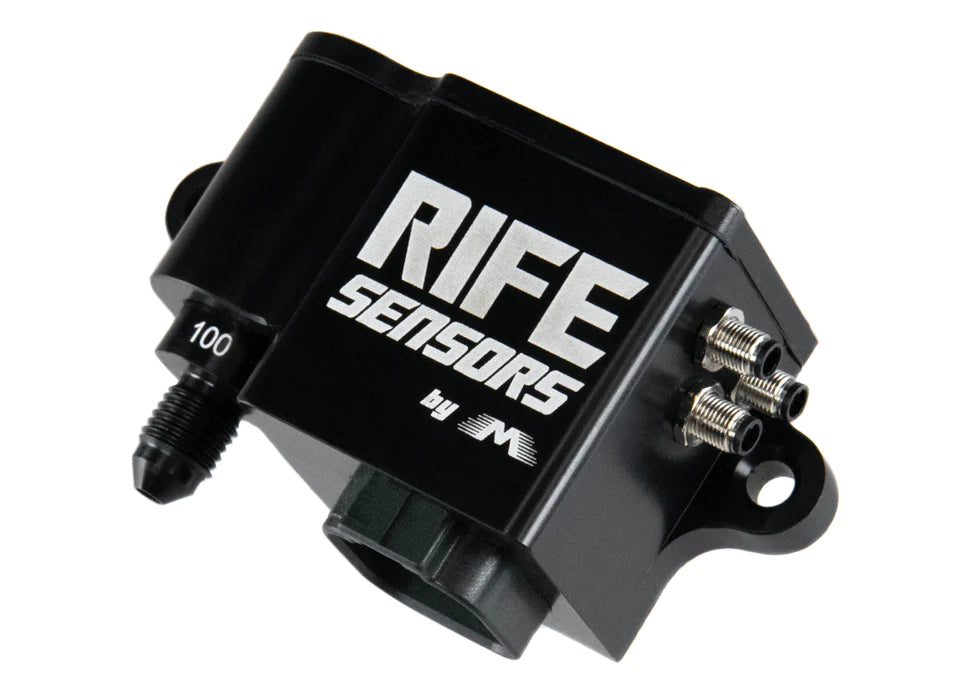

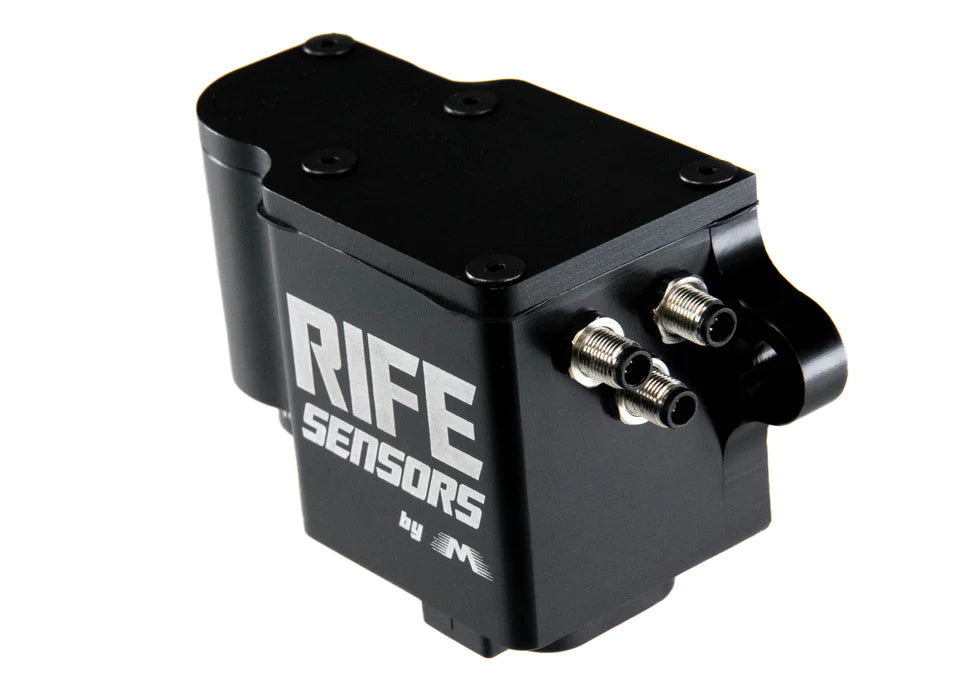

RIFE Single Pressure Sensor 1 + 3 Expandable Block (Choose Pressure or MAP)

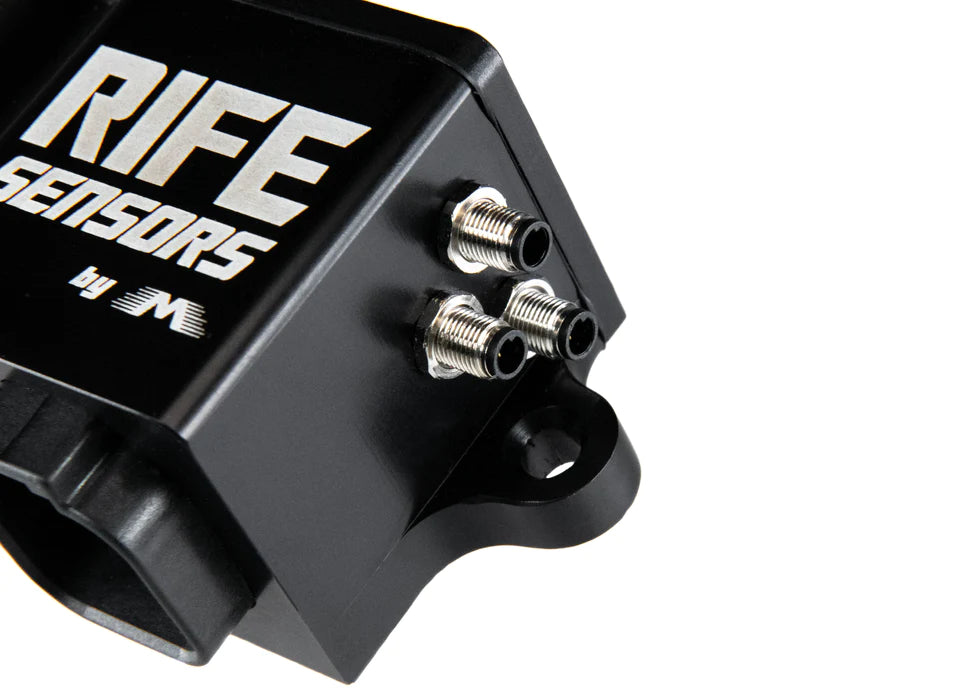

This block includes 3 additional Analog inputs! These side mounted M5 analog inputs can be used for connecting any 0-5V analog sensor or Temperature sensor. 5V and sensor ground are supplied through connector

RIFE Sensor Blocks Feature:

• Higher accuracy
• Faster response
• One distributed sensor Ground feeds up to 4 sensors
• One distributed sensor Power feeds up to 4 sensors
• Sensor Power/Ground are circuit protected
• Dual Vibration isolated sensors
• Choose -3 AN or 1/8 NPT connections
• Deutsch DT 6 pin connector
• Sealed to IP69
• Billet aluminum construction
• Sensors Utilize Industry standard 0-5V output
• Compatible with all ECU’s/data loggers
• Flexible mounting options
• All wetted parts are 316 stainless, Viton or anodized aluminum
• 1 Bar, 2 bar, 3 Bar, 4 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
• 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi
• Compatible with Oil, Fuel (Gasoline and Methanol), Transmission Fluid, CO2, Compressed Air, Water, Coolant and more!

*Does not include harness. Click here to order the harness

For replacement sensor pods: Click Here

For M5 Cable Options: Click Here

 *Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.

For Wiring/Sensor Location see chart below
