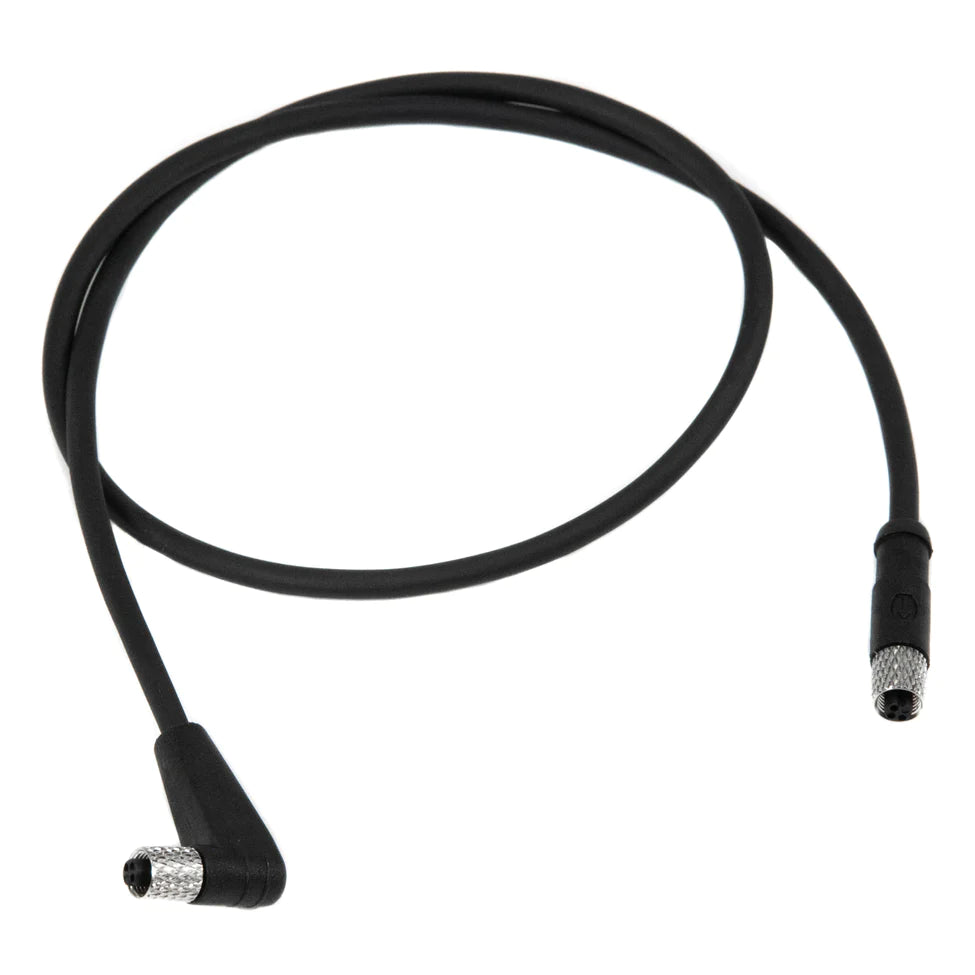

RIFE M5 Cable Straight/90° – 1.5 / 3 / 6 / 9 Feet
RIFE M5 Cable Straight/90° – 1.5 / 3 / 6 / 9 Feet - 1.5 Feet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
RIFE M5 Cable Straight/90° – 1.5 / 3 / 6 / 9 Feet
Description
Description
RIFE M5 Cable Straight/90° – 1.5 / 3 / 6 / 9 Feet
RIFE’s M5 cables provide a durable/sealed solution for connecting your RIFE sensors.
Simple screw-on attachment
Hi-Temperature Polyurethane Jacket
Available in:
- Straight/90° both ends finished
Connector OD: .250”, cable Diameter: .160”
DIY Finishing kit (Part# 52-1309) includes straight connector and adhesive heat-shrink for custom length cables (soldering required): Click Here
If removing or changing an end on this cable to adapt to a non standard m5 connector the wire colors / pinouts are as follows so long as you are using RIFE supplied M5 cables
Pin1 Brown: Signal Out
Pin2 Black: Sensor Power
Pin3 Blue: Sensor Ground
