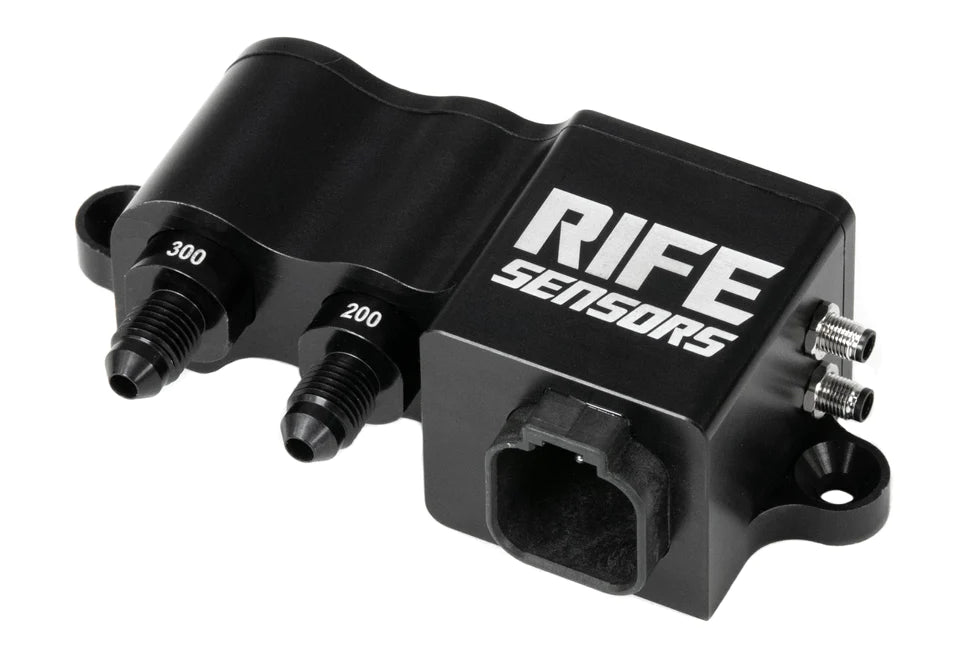

2 Pressure/MAP Sensors, 2 expandable M5 inputs, one wiring plug
These are built to order for your specific vehicle
NOTE: Please put in notes section of order your 2 sensor choices. Notes should include a list with what sensor and 3AN male or 1/8" NPT for each. We cannot fulfill your order until we have this info.
This block includes 3 additional Analog inputs! These side mounted M5 analog inputs can be used for connecting any 0-5V analog sensor or Temperature sensor. 5V and sensor ground are supplied through connector
RIFE Sensor Blocks Feature:
- Higher accuracy
- Faster response
- One distributed sensor Ground feeds up to 4 sensors
- One distributed sensor Power feeds up to 4 sensors
- Sensor Power/Ground are circuit protected
- Dual Vibration isolated sensors
- Choose -3 AN or 1/8 NPT connections
- Deutsch DT 6 pin connector
- Sealed to IP69
- Billet aluminum construction
- Sensors Utilize Industry standard 0-5V output
- Compatible with all ECU’s/data loggers
- Flexible mounting options
- All wetted parts are 316 stainless, Viton or anodized aluminum
-
1 Bar, 2 bar, 3 Bar, 4 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
-
60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi
- Compatible with Oil, Fuel (Gasoline and Methanol), Transmission Fluid, CO2, Compressed Air, Water, Coolant and more!
-
*Does not include harness. Click here to order the harness
For replacement sensor pods: Click Here
For M5 Cable Options: Click Here
*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.
For Wiring/Sensor Location Info See the Picture Below
For Sensor Scaling Data: Click Here
Watch this video on the internals and the unique features of this sensor solution!
