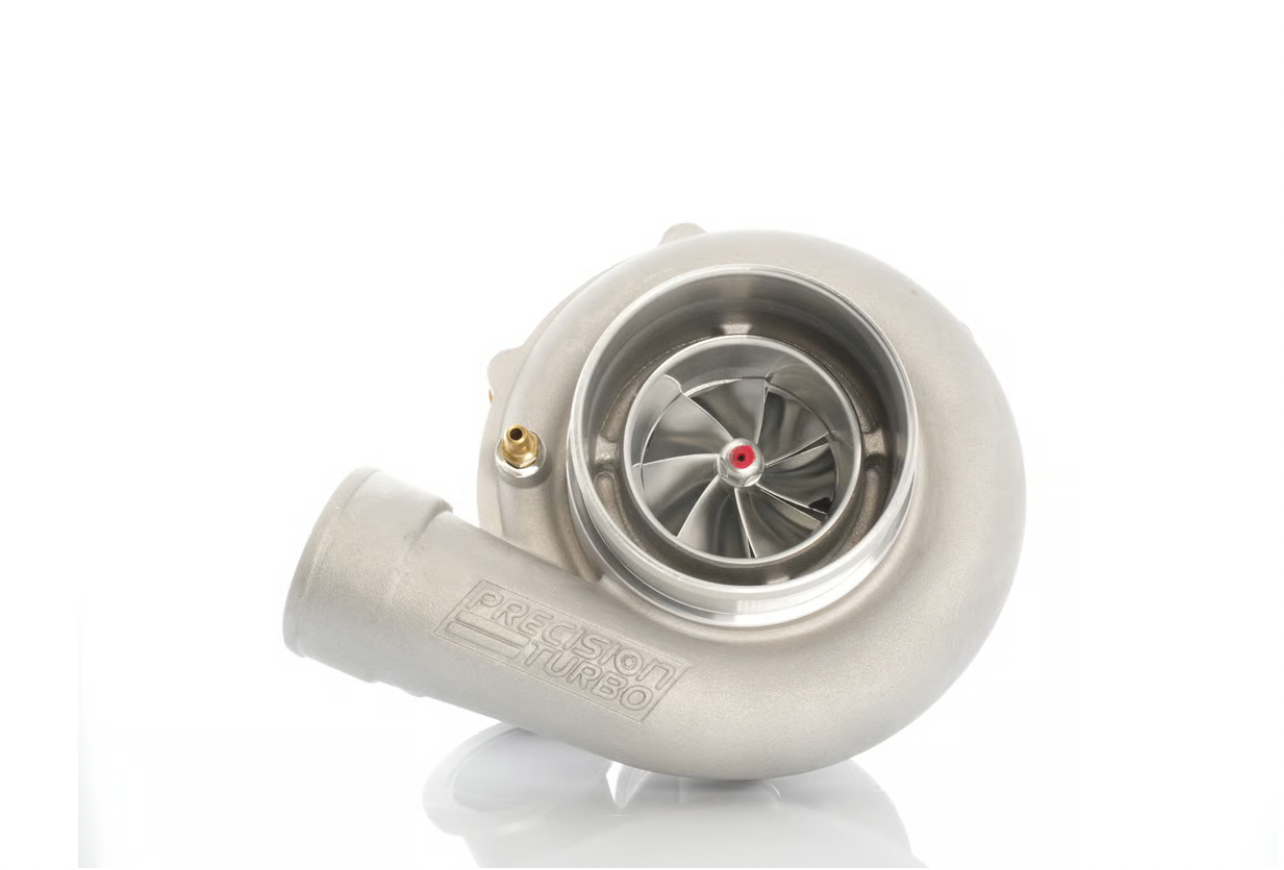

Precision Turbo Next Gen HP CEA 6870 Billet 68mm Ball Bearing V-Band SS .96 A/R V-Band Stainless

Introducing the all-new Precision Turbo Next Gen 6870 turbocharger.

This evolution in our lineup involves the development of a new aero package, which includes a redesigned compressor cover with numerous flow enhancements and a new compressor wheel profile that incorporates an extended tip on the exducer. All of these improvements result in a 10% increase in flow compared to Gen 2 technology.

HP Rating: 1,200


Features

• Next Gen Aero Technology including all-new flow enhancements to the compressor cover and wheel providing 10% more flow than previous Gen 2 aero technology.


• CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.


• Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability.


• All-new HP compressor cover w/ 4" inlet and 3"outlet for maximum air flow.


• High flow / highly efficient 70mm turbine wheelcient 70mm turbine wheel.



Specifications

Compressor Wheel Inducer: 68mm
Compressor Wheel Exducer: 92.5mm 94.7 Extended Tip
Turbine Wheel Inducer: 78.7mm
Turbine Wheel Exducer: 70.2mm
