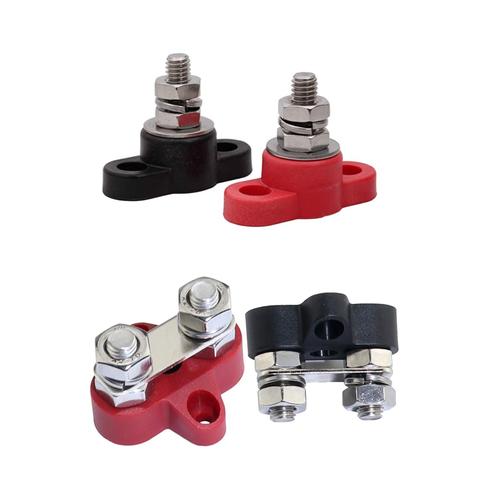

POWER GROUND JUNCTION STUDS

Isolated power and ground studs / junction studs used for connecting multiple power or ground wires at a single point for distribution.  Power studs come with stainless hardware

• Material: Glass Filled Nylon
• Stud Sizes: 1/4, 5/16, 3/8
• Melting Temp: 515º F (268ºC)
• Max Operating Temp: 140ºF (60ºC)
• Certifications: UL 94 HB
• Colors: Red & Black
• Mounting: 2 Bolt Base, Mounts with #10 Machine Screws
• Included: SS Stud, Lock Washer, and Nut

**Dual stud junction has a buss bar that connects the 2 studs, this can be removed if desired

      *Integrated Nut at the Bottom of the Stud for Tightening

Max Amperage: 1/4" Stud= 100 amps, 5/16"= 200 amps, 3/8= 250 Amps
