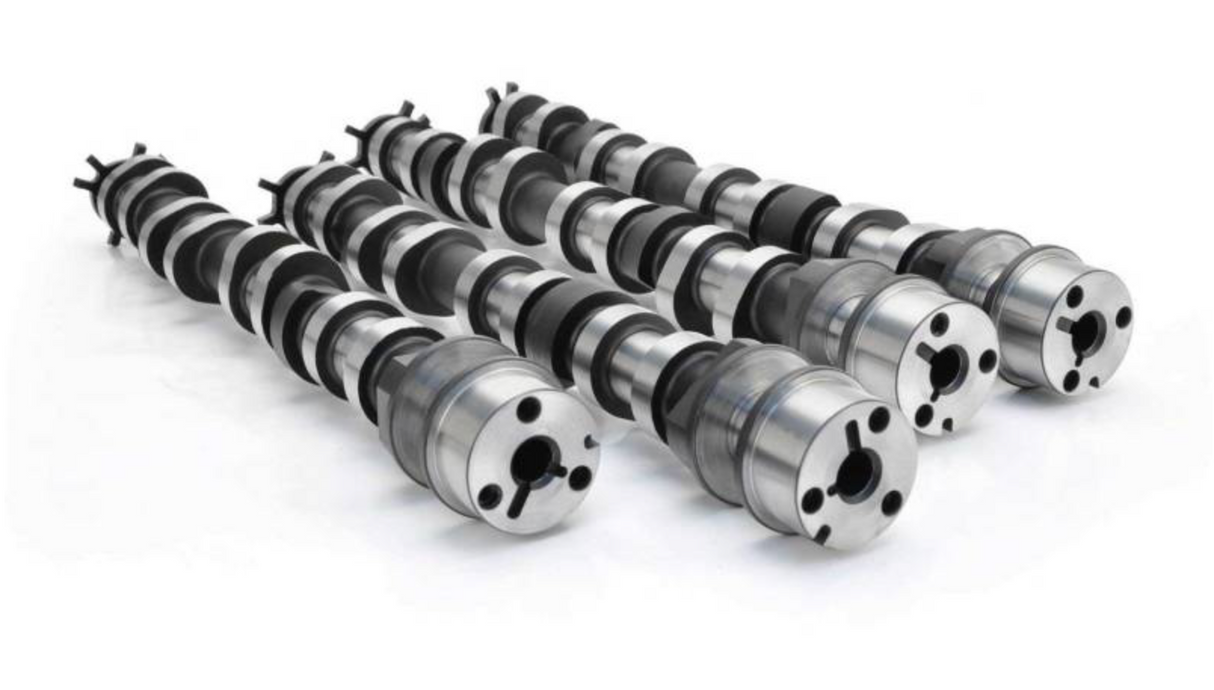

MHS 5.0L Coyote Race Turbo Camshafts
Description
Description
| Part Number | MHS-50-TBR |
| Name | 5.0L Coyote Race Turbo |
| Duration @ .050" | 236 / 234 |
| Lift | .512" / .512" |
| Lobe Sep Angle | 115.5 + 5.5 |
| Center Lines | 110 / 121 |
| Springs Required? | Yes |
| Suggested Valve Springs | MHS / PAC Stage 3 |
| Phaser Deletes Required | YES |
These MHS 5.0L Coyote Race Turbo Camshafts are designed for high HP Street / Strip and Race applications. These camshafts will easily support 1300 - 1400 WHP, efficiently. Quick spool times, and excellent gains throughout the entire RPM band. 3500 - 4500 Stall recommended, depending on Turbo size and intended use. Will support 8500+ RPM. Ported heads not necessary but recommended for maximum gains.
Valve Events and Center Lines:
For large single and larger twin turbo applications, we typically will tighten up the LSA to improve spool time. 80mm + Single and 62mm + twin applications will benefit from this. We have had very good success tightening up the LSA to 112 - 112.5 and running 5.5 degrees of advance. Please contact us for any questions on degreeing these camshafts for your specific combination.
Phaser Deletes or Lockout Plates required.
