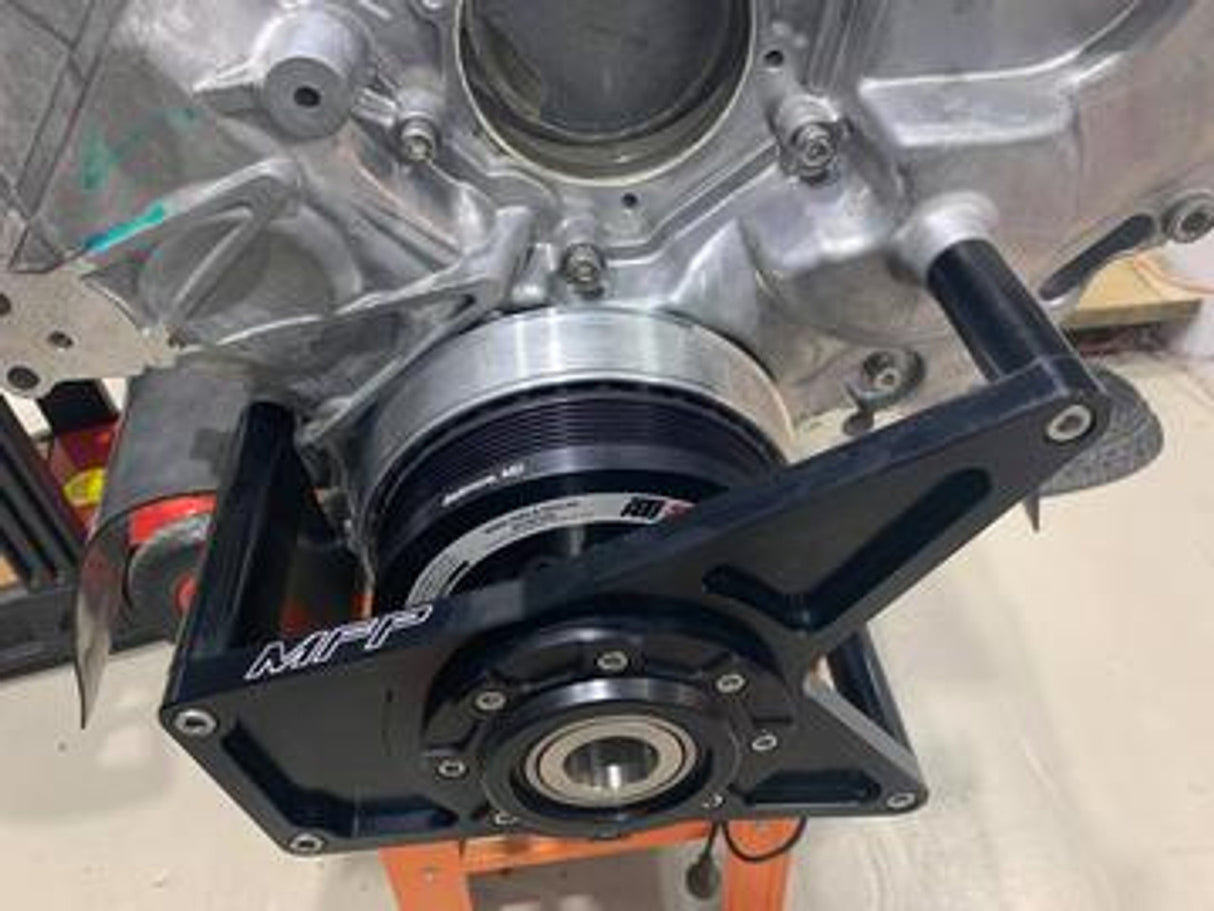

MFP MAIN FORCE PERFORMANCE COYOTE WHIPPLE CRANK SUPPORT 6 RIB (2011-2023 MUSTANG GT)

The billet MFP crank support prevents crank breakage on supercharged applications. The 5.0L Coyote Whipple Crank Support is direct fit for Ford 2011-2023 Mustang GT with Whipple Gen 3, 4, or 5 superchargers. Specifically setup for use on 6 Rib Belt Kits. The crank support system on the Coyotes are a weak link when installing an aftermarket supercharger, especially the larger Whipple Superchargers units. The added force on the belt & pulley system has been known to flex or snap the 5.0L Coyote crankshafts causing catastrophic damage.

Features:

• 2011-2023 Mustang GT with Whipple Supercharger
• 6 Rib Kit
• Billet aluminum crank support system
• Minimizes flex or movement to prevent breakage
• Large 316 billet hub
• High RPM capable bearing

Installation:

The crank support systems, which are made from billet aluminum with a billet 316 steel bearing, helps to minimize any flex or movement in the front of the crank to help prevent breakage. The aluminum plate installs onto the timing cover around the balancer using the included spacers and bolts. The balancer bolt slides through the large 316 billet steel hub that will also sit inside of the balancer to help keep it from moving. This hub will replace the factory washer and then sits inside of a large, high-RPM-capable bearing attached to the billet aluminum plate. These act together to keep the crank in place and in one piece.

 Click Here for Installation Instructions

Fitment:

2011 Mustang w/6 Rib Belt System

2012 Mustang w/6 Rib Belt System

2013 Mustang w/6 Rib Belt System

2014 Mustang w/6 Rib Belt System

2015 Mustang w/6 Rib Belt System

2016 Mustang w/6 Rib Belt System

2017 Mustang w/6 Rib Belt System

2018 Mustang w/6 Rib Belt System

2019 Mustang w/6 Rib Belt System

2020 Mustang w/6 Rib Belt System

2021 Mustang w/6 Rib Belt System

2022 Mustang w/6 Rib Belt System

2023 Mustang w/6 Rib Belt System
