SMALL FRAME TURBO MOUNT
SMALL FRAME TURBO MOUNT - Standard 2.0 Drain Bolt Spacing is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
SMALL FRAME TURBO MOUNT
Description
Description

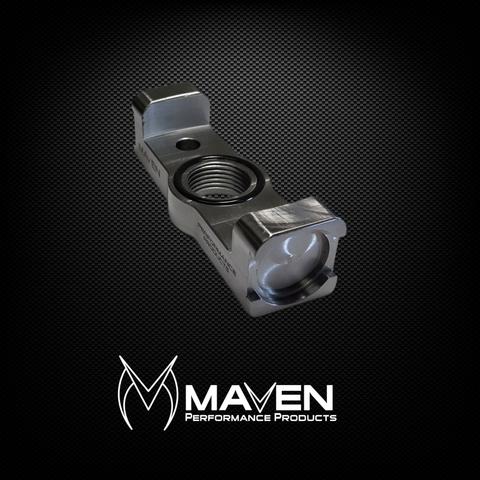

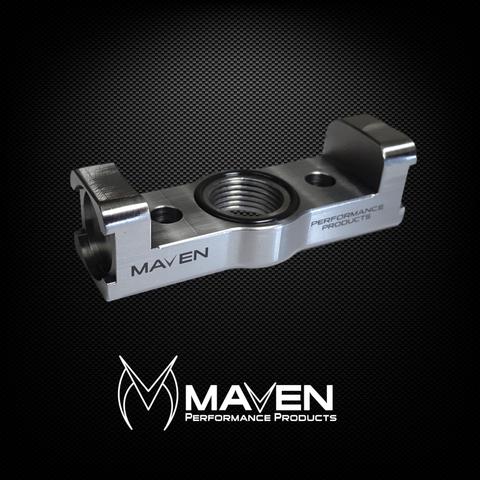

THE MAVEN PERFORMANCE BILLET STEEL TURBO MOUNT SUPPORTS THE TURBO FROM THE BEARING HOUSING AT THE DRAIN INTERFACE. THIS MOUNT WAS DESIGNED SPECIFICALLY FOR SMALL FRAME TURBOCHARGERS SUCH AS THE BORG WARNER s300, PRECISION TURBOS (60/70MM RANGE) PLUS A VERSION FOR THE GT35
FEATURES:
DESIGNED & MACHINED IN THE USA
BILLET STEEL – 1018 CRS
2 DIFFERENT TUBE DIAMETER POCKETS- 7/8″ & 1″
CENTER MOUNTING ON BEARING HOUSING
-10 ORB/AN DRAIN (GT35 VARIATION= -8 ORB/AN)
O-RING SEAL TO DRAIN SURFACE- NO GASKET REQUIRED (STANDARD GASKET ON GT35 /1.5" VERSION)
BEARING HOUSING CAN PIVOT 360 DEGREES WITHOUT INTERFERENCE
WEIGHS JUST 9.5 oz
MEASURES 3.75″L 1.35W 1.125H
