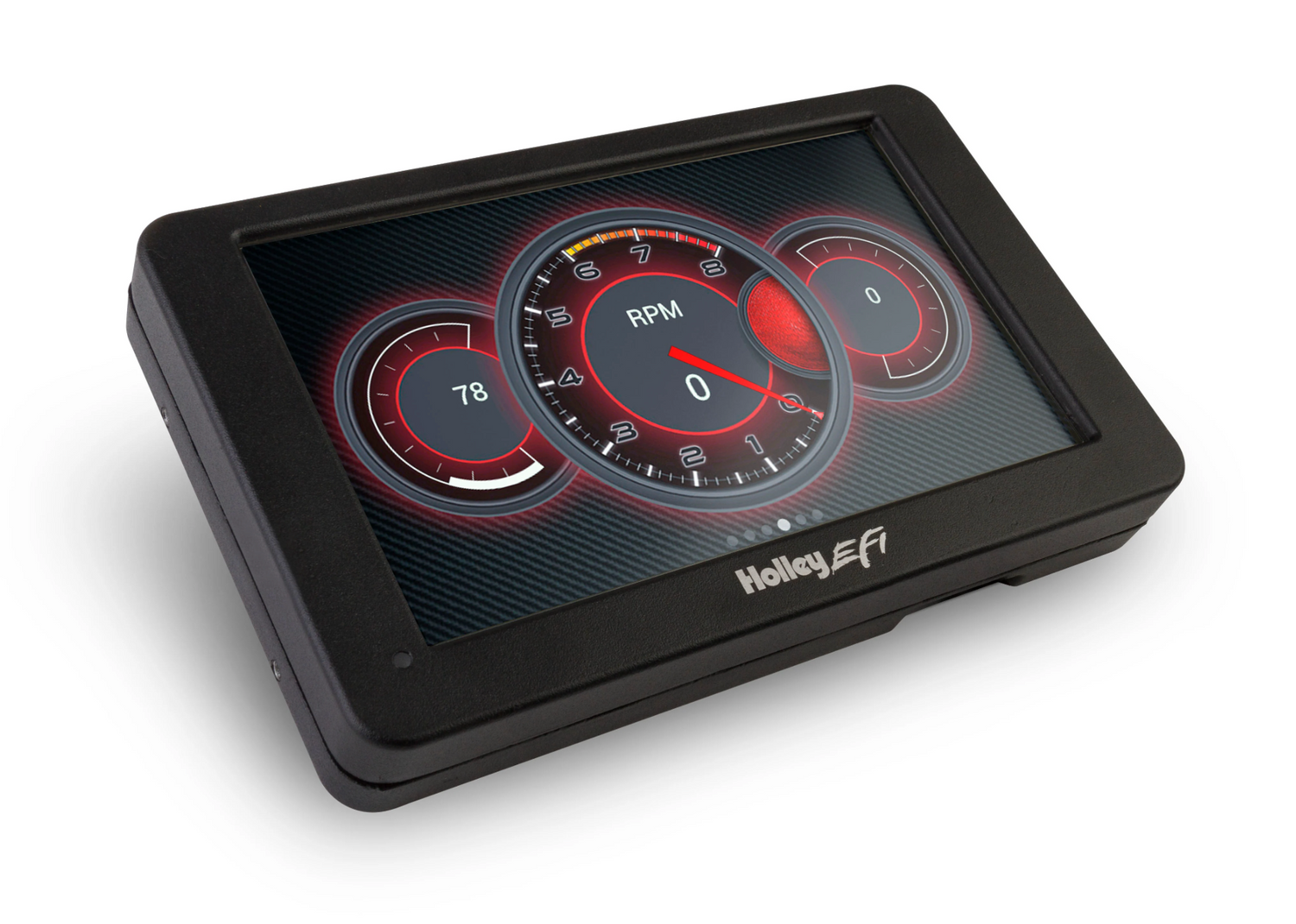

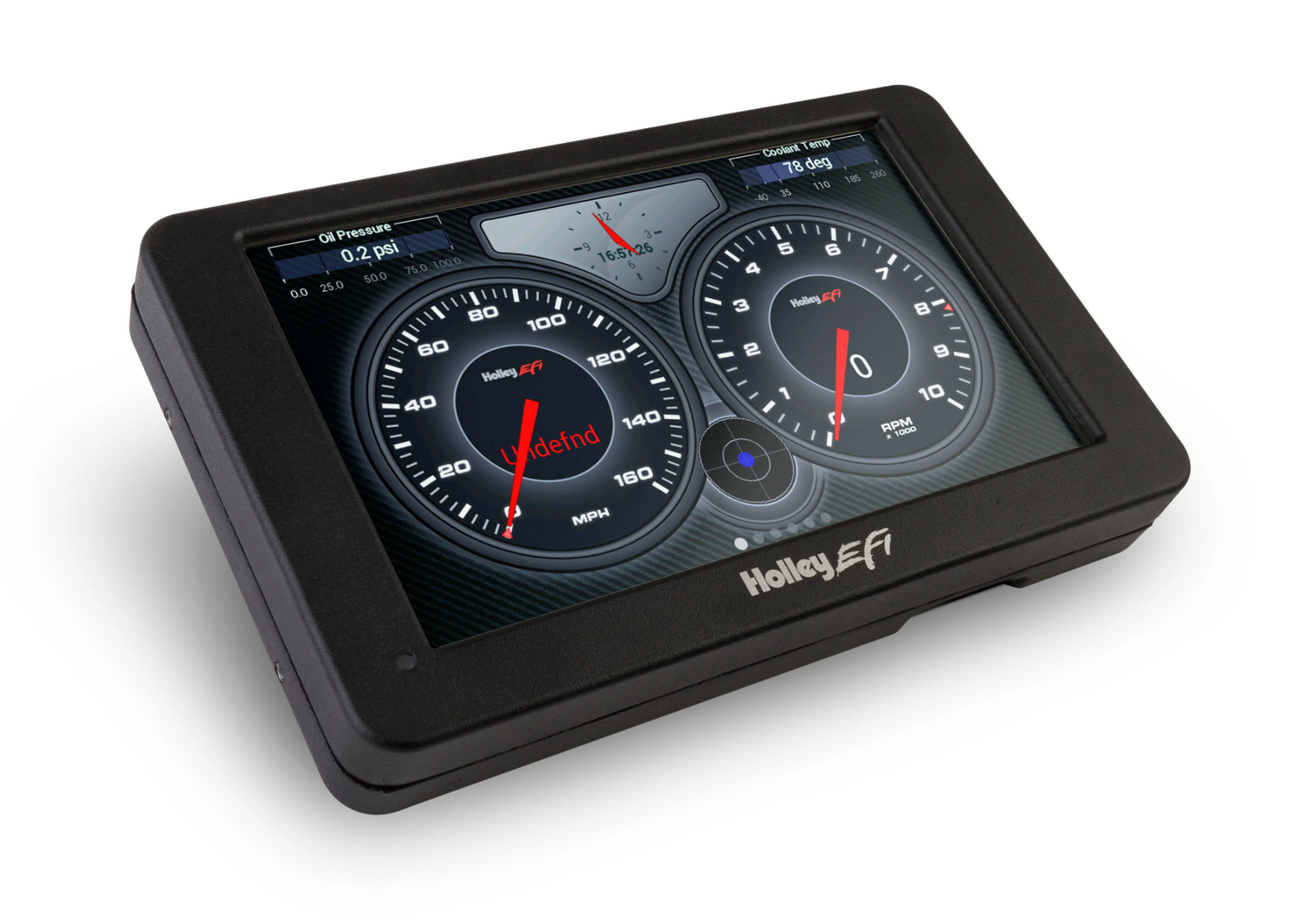

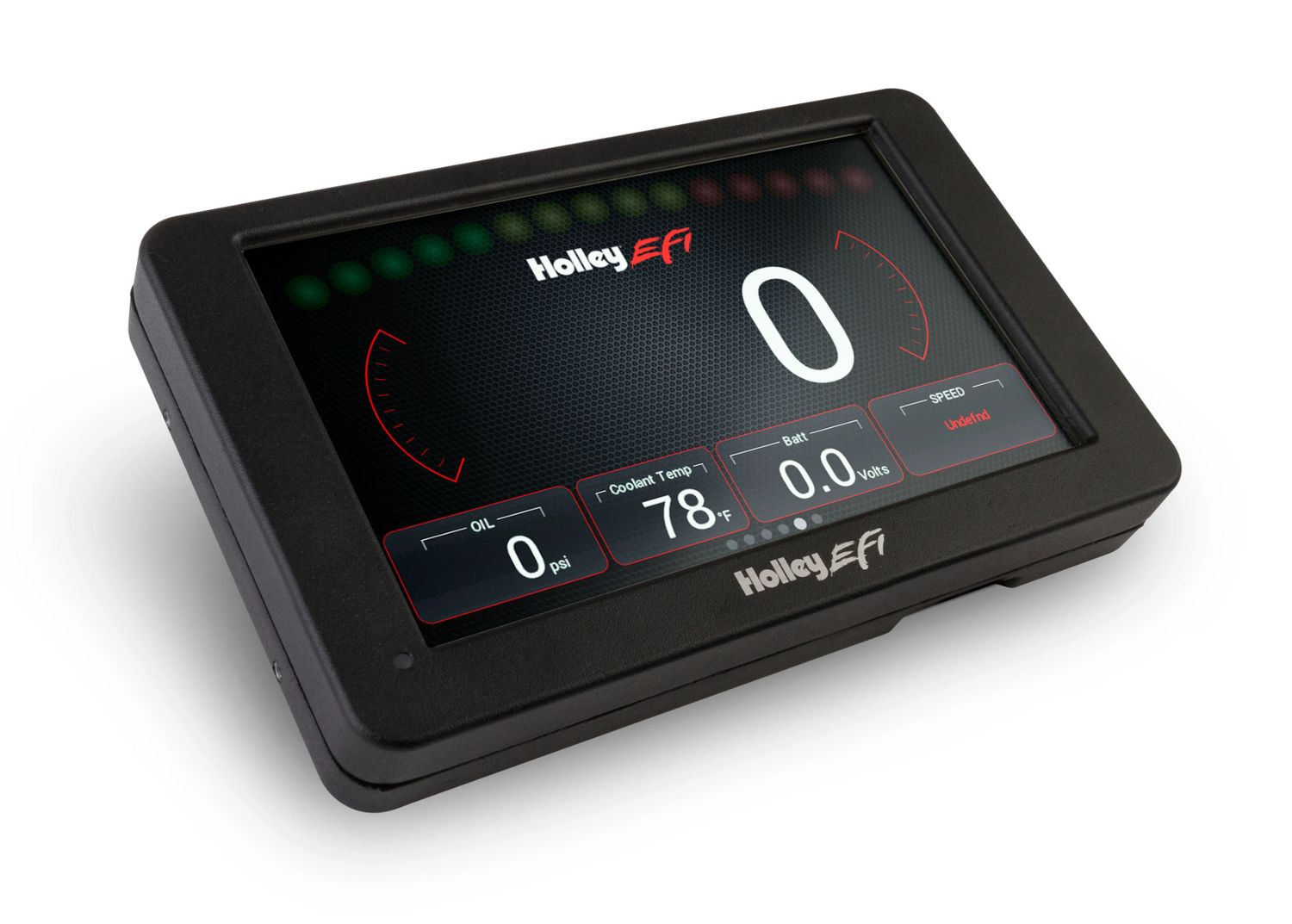

Holley Standalone Digital Dash Kit

$1,446.95
Shipping calculated at checkout.


Description



Compatible with Holley EFI, Sniper 1, and Terminator X

Part # 553-109
Have you been looking for a dash solution for your vehicle, but just cannot find anything you like or that is cost-effective? No need to look any further as Holley has created a full-color touch screen dash that includes sensors for monitoring basic engine parameters as well as a GPS speedometer all in a cost-effective package. Holley's standalone digital dash has great features such as, a weather-resistant aluminum housing for durability, multiple gauge and indicator type selections, customizable screen and gauge layouts, and a virtual switch panel just to name a few. With the integrated 3 axis accelerometer and data logging, the dash is ideal for anything from a JR dragster to Sportsman racing. It is also equally at home in a daily driver or a show winning roadster.

Features:

  • Plug and play to Holley EFI systems via CAN bus (not compatible with Sniper 2)
  • Weatherproof aluminum housing allowing flexible mounting options (template included)
  • 7” screen with 800 x 480 resolution measuring at 4.625" H x 7.5” W x 1" Depth
  • Auto brightness and dimming with low glare to the touchscreen to view from any driving angle
  • 10 preconfigured screens you can customize to personal preferences displaying any measurements
  • Complete customizable display of all EFI parameters including every user configurable input and output available
  • Numerous gauge and indicator types with limitless customization options
  • Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
  • Virtual switch panel replacing the need for physical switches in vehicles
  • Built in warning lights and alarms to keep you alert for any set parameters
  • Progressive shift light and multiconfiguration light bar
  • Control and on-screen playback of data logs
  • Download and save data logs to external USB memory stick or expand internal storage on onboard microSD card
  • Integrated 3 Axis Accelerometer
  • Ability to connect to Holley and non-Holley ECU’s
  • Includes digital dash with input/output adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, coolant temperature sensor, manifold air pressure (MAP) sensor, GPS module
