Fore Innovations

Fore Fuel Rails for 18-20 F-150

$265.00
Shipping calculated at checkout.
Selection will add to the price

Description

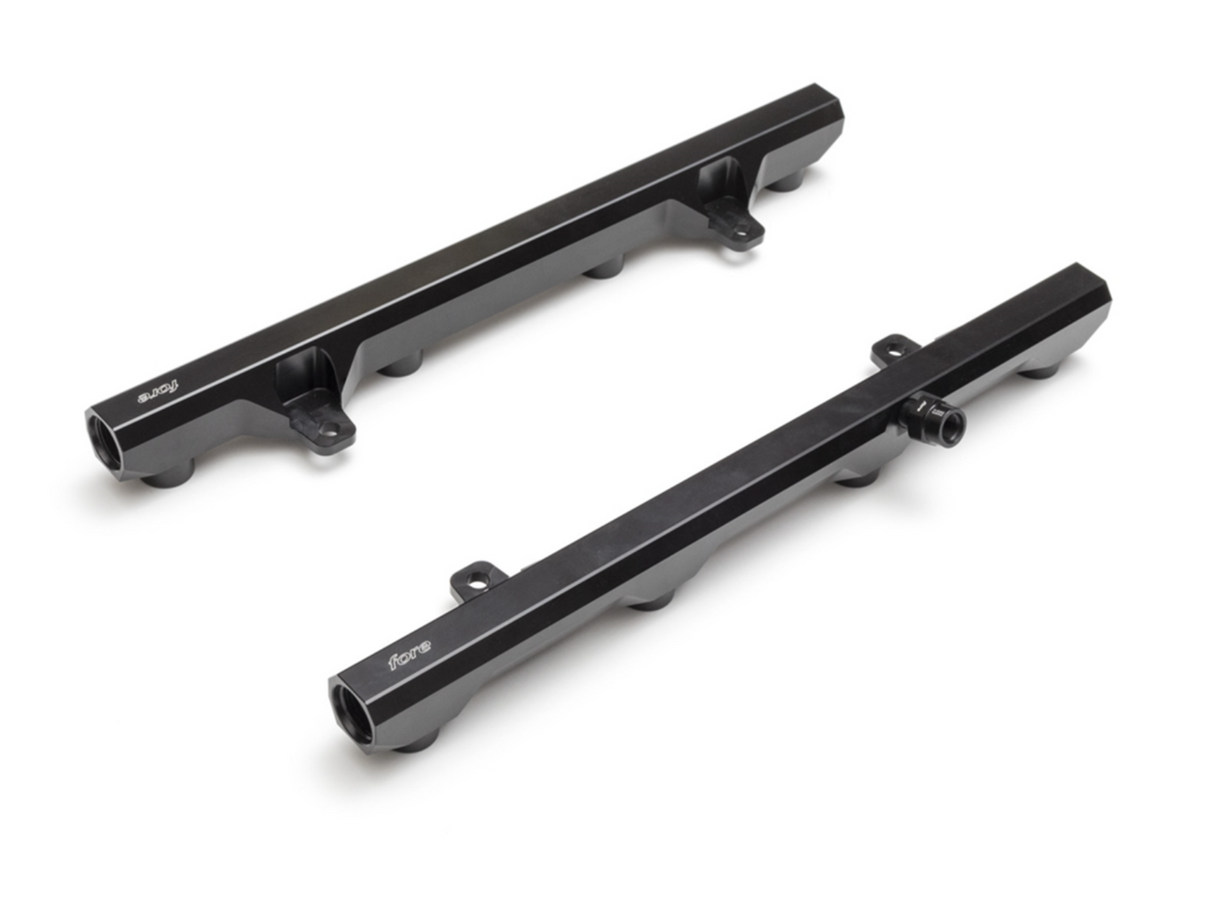

Fore Innovations monoblock fuel rails for the Gen 1/2 Coyote motor. Fully machined from solid block of 6061 aluminum, then black anodized and laser etched. Integrated mounting tabs eliminate rail tab flex under the highest intake and fuel pressures. Designed to use factory length fuel injector.

Crossover kits are unassembled. Installer will have to cut hose to length and assemble hose ends.

MUST use a PTFE based thread sealant on auxiliary port. Recommend Loctite #567 or Permatex 80631/80632.

SPECIFICATIONS
  • End port size: ORB-8 (o-ring boss with 3/4-16 UNF-2B threads)
  • Aux port size: NPT 1/8"
  • Sensor Port Size: ISO 6149-1 M10x1 with included Viton o-ring for use on OE sensor
FITS:
  • Gen 1/2 Coyote (must remove sensor adapter and plug aux port)
  • Gen 3 Coyote
  • Voodoo
  • All FRPP intakes
  • Not for use with any supercharger or intake that includes rails

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Fore Innovations

Fore Fuel Rails for 18-20 F-150

$265.00
Fore Innovations monoblock fuel rails for the Gen 1/2 Coyote motor. Fully machined from solid block of 6061 aluminum, then black anodized and laser etched. Integrated mounting tabs eliminate rail tab flex under the highest intake and fuel pressures. Designed to use factory length fuel injector.

Crossover kits are unassembled. Installer will have to cut hose to length and assemble hose ends.

MUST use a PTFE based thread sealant on auxiliary port. Recommend Loctite #567 or Permatex 80631/80632.

SPECIFICATIONS
  • End port size: ORB-8 (o-ring boss with 3/4-16 UNF-2B threads)
  • Aux port size: NPT 1/8"
  • Sensor Port Size: ISO 6149-1 M10x1 with included Viton o-ring for use on OE sensor
FITS:
  • Gen 1/2 Coyote (must remove sensor adapter and plug aux port)
  • Gen 3 Coyote
  • Voodoo
  • All FRPP intakes
  • Not for use with any supercharger or intake that includes rails
