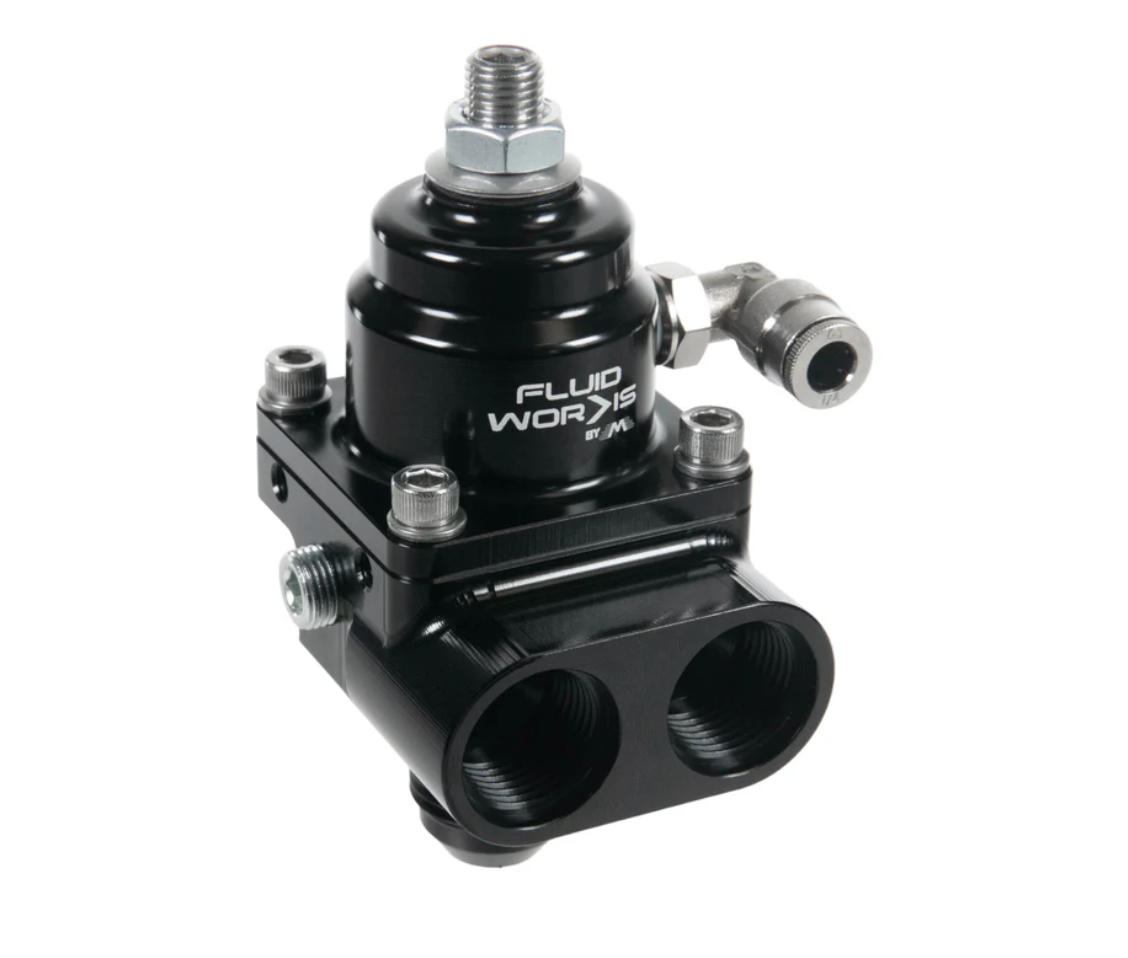

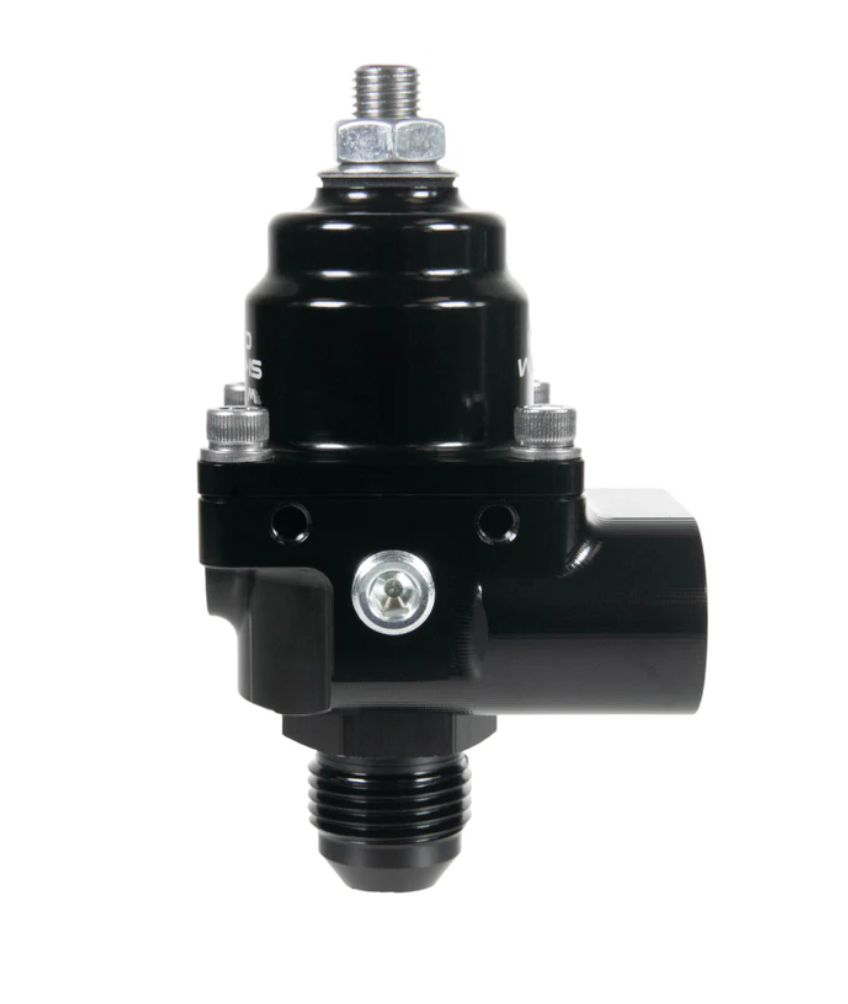

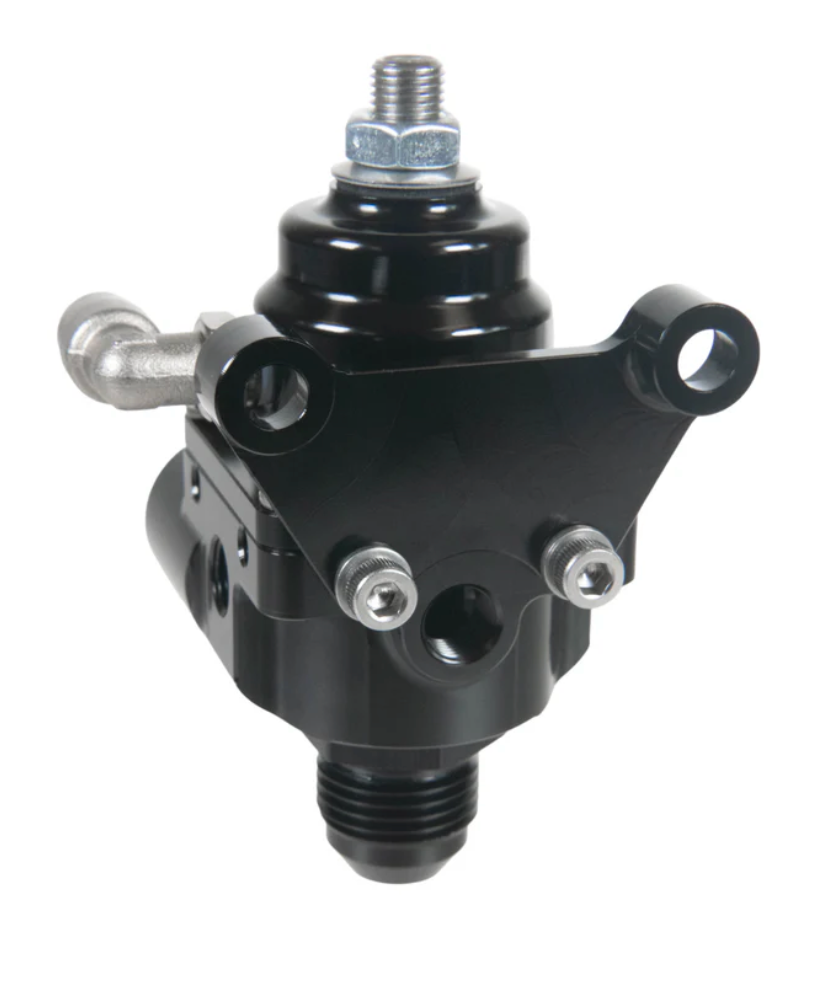

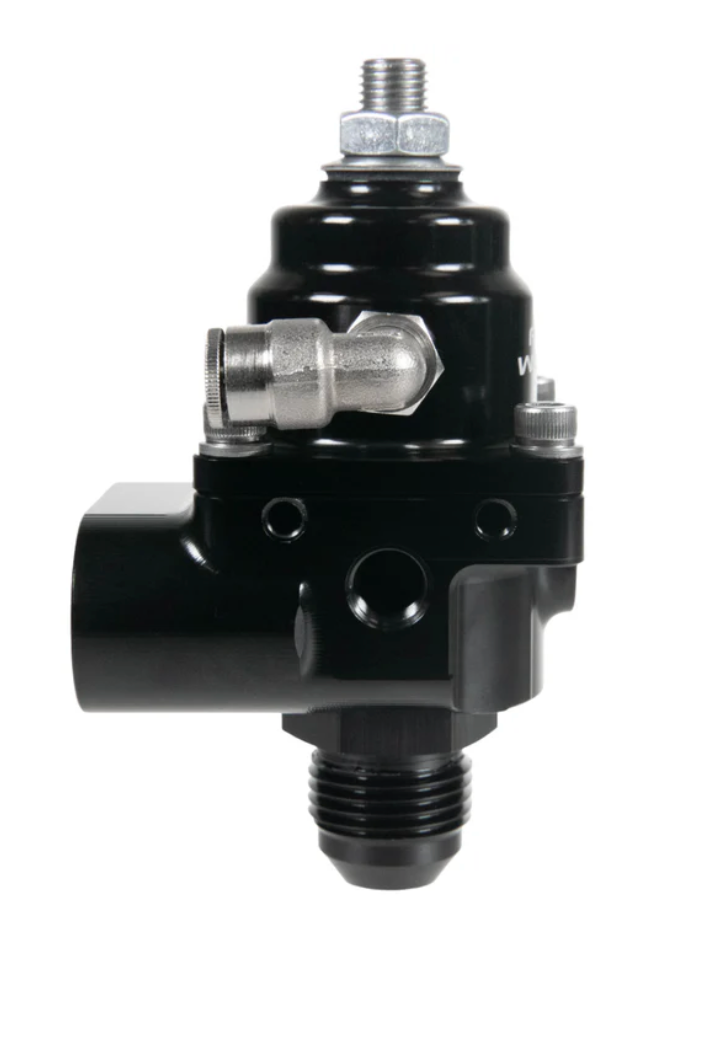

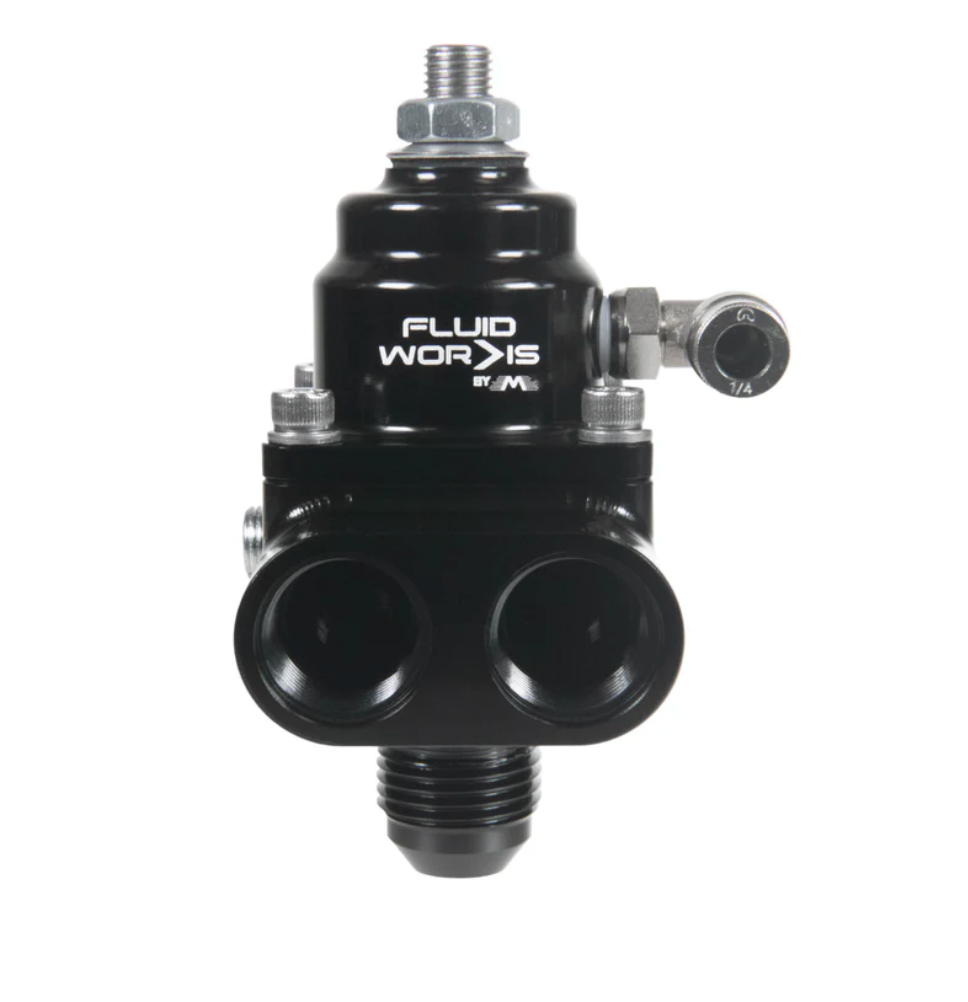

Fluidworks 1-10 gpm Fuel Pressure Regulator 35-70 psi Front Loader Fittings

Fluidworks 1-10 gpm Fuel Pressure Regulator 35-70 psi Front Loader Fittings 27-187

For Instructions: Click Here

Fluidworks innovative new fuel pressure regulators utilize a needle and seat vent to control fuel bypass in a highly stable and consistent manner dynamically.

Features:

• Front inlet fittings avoids hard to package and large space consuming 180 degree oriented fitting layouts
• Compatible with 1-10 GPM fuel pump setups
• Black Anodized Exterior

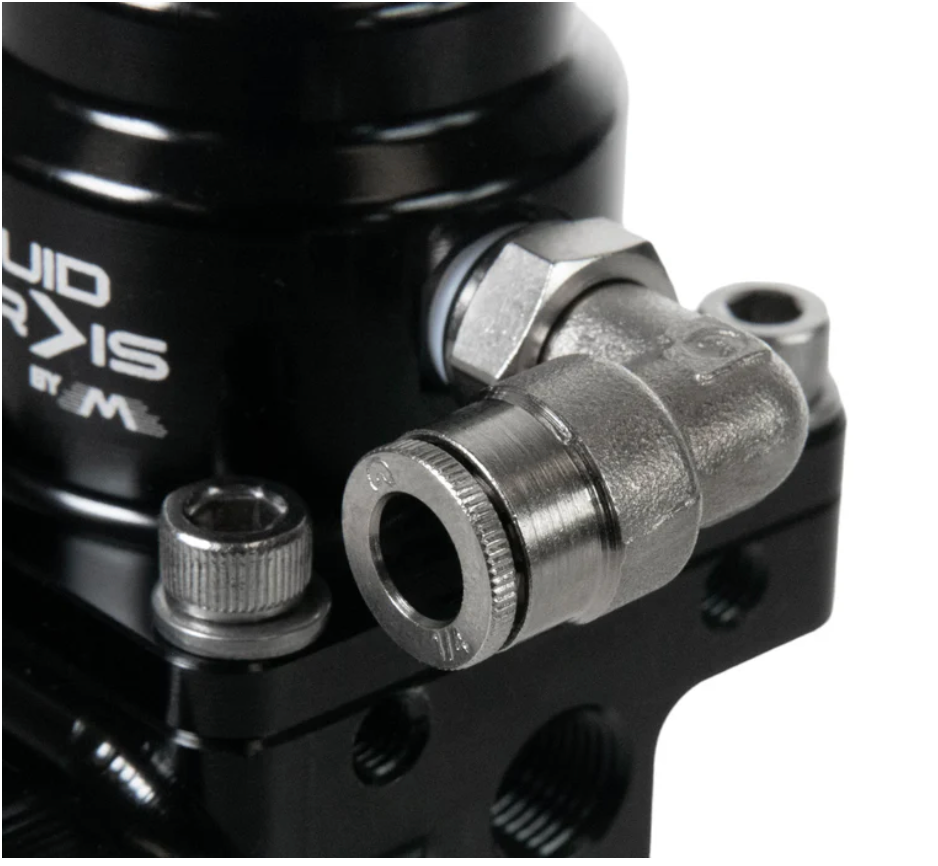

• Can be used as Boost Reference or Atmospheric reference
• 1/8" NPT Female Reference Fitting

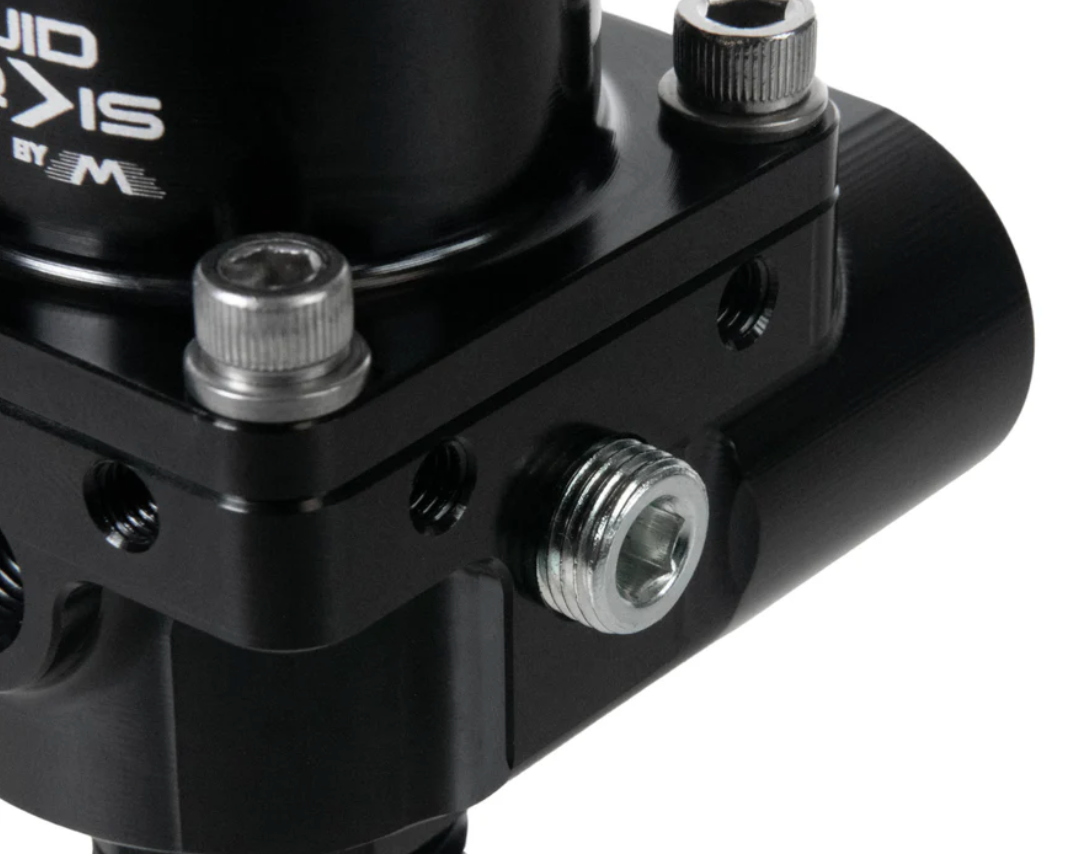

• (2) 1/8" NPTF Fuel Pressure Reference Ports for use with mechanical gauge and/or pressure transducer
• Approved for use with Gasoline, Oxygenated, Ethanol and Alcohol Fuels
• Made in the USA
• Tapered Needle and Seat Vent Relief
• Bypass Regulator
• (2) -8orb female inlet fittings

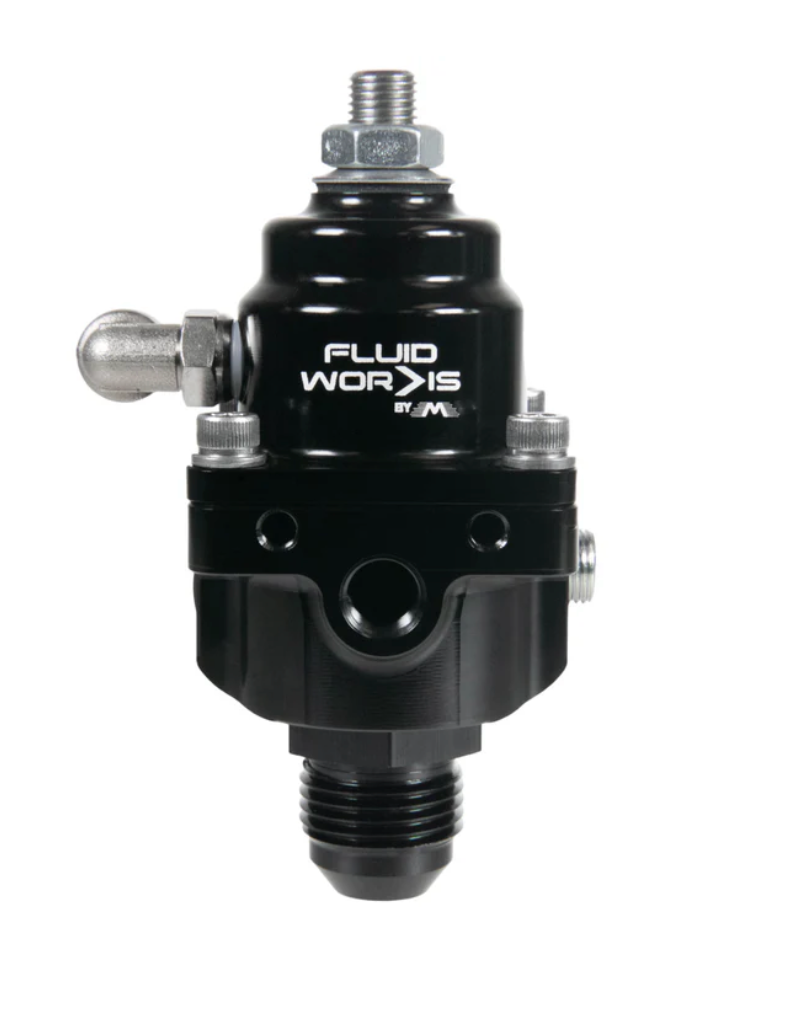

• Built in -8AN, -10AN or -12AN return fitting (choose at checkout)
• Designed to be used in 35-70psi adjustable base pressure
