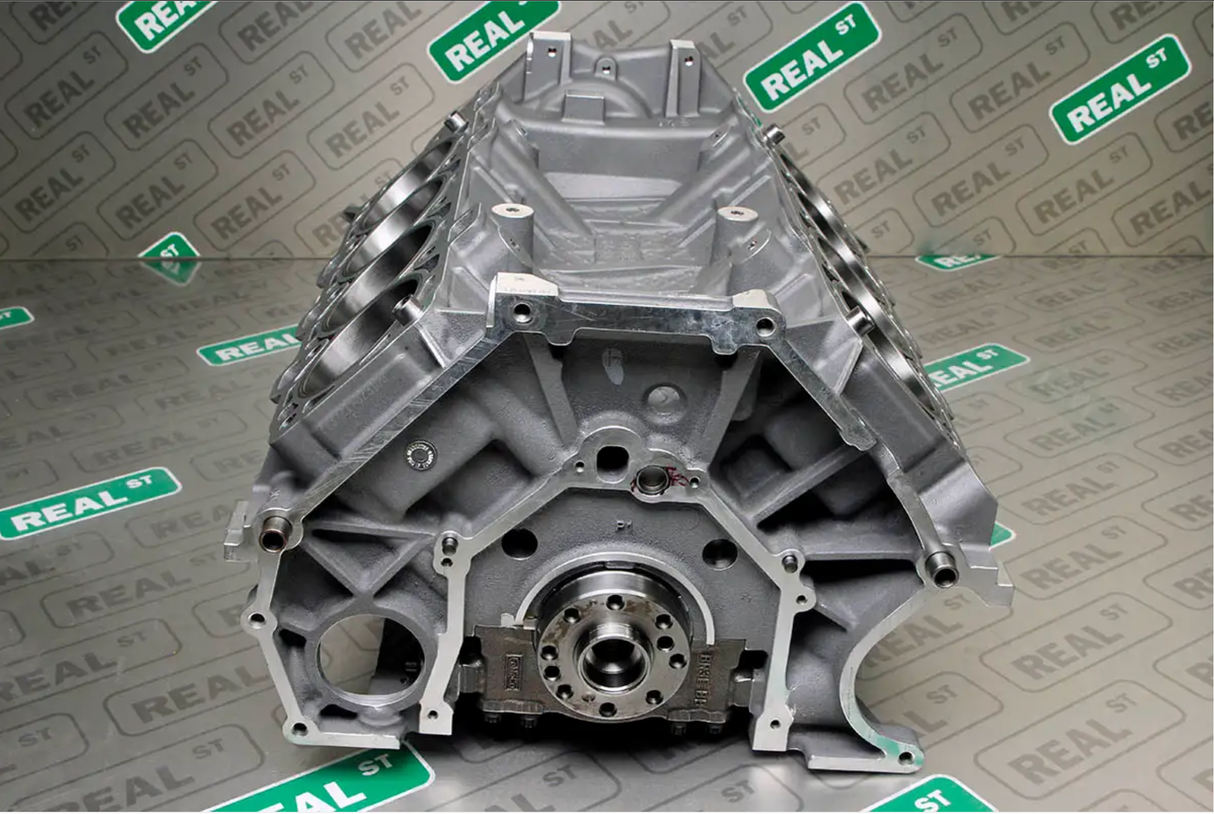

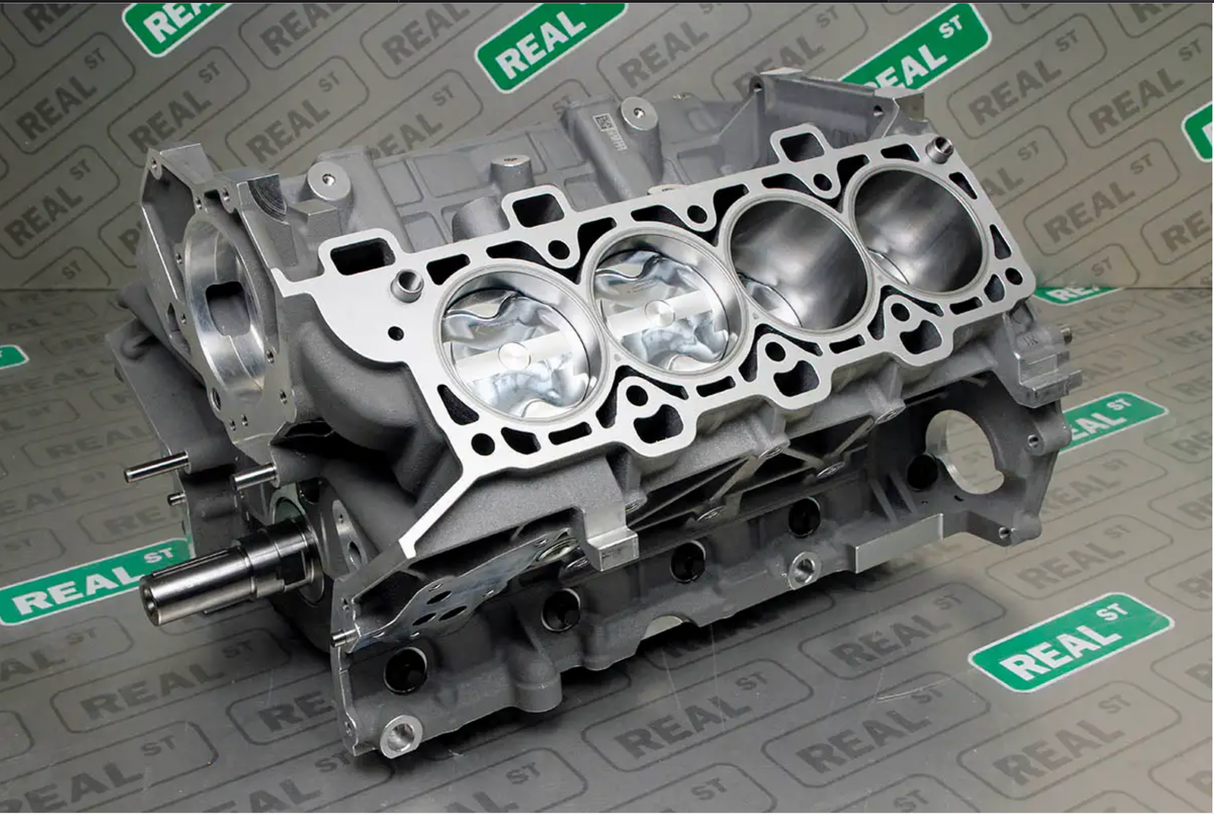

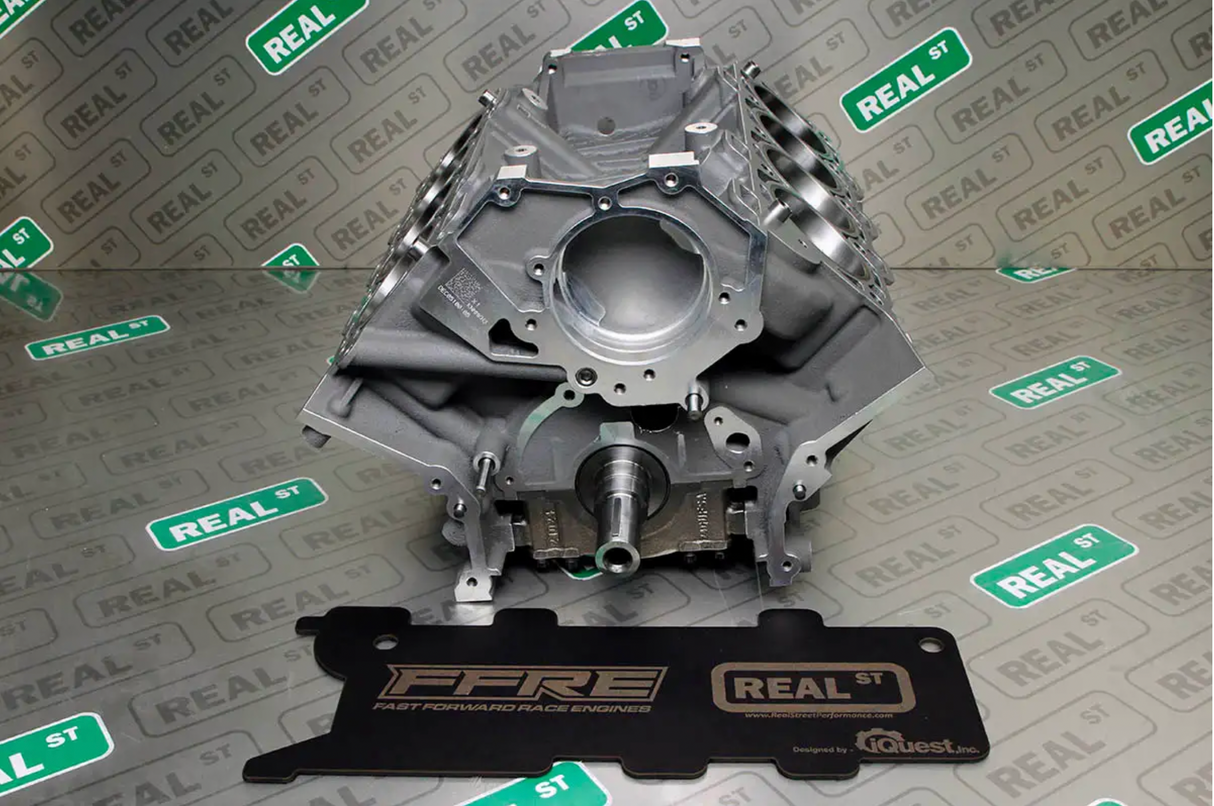

FFRE Stage 3 Predator Short Block I-Beam Rods 3.630" 10.0:1 Pistons Mustang 11-17 5.0L Coyote Gen 1 2

FFRE Gen 2 Mustang Stage 3 Short Block with 5.2L Predator Block Upgrade

• New 5.2L Predator Block
• Flat Top Pistons (10.0:1 Compression) for use with all Coyote and Voodoo heads besides the GEN 3 Direct Injection heads
• Inspect block, deburr, pre-wash, bore for sleeves, hone for sleeve install, measure flange depth and diameter, deck block, wash sleeves and block for install, install sleeves, seat sleeves, bore and hone with plate
• FFRE Coyote Sleeves
• O-ring Predator Block
• Line hone mains with ARP studs, wash block for assembly, check crankshaft for straightness, balance rotating assembly, pin fit rods and pistons, check rod housing bore, check main and rod bearing clearances, file fit rings, assemble short block.
• Ford Performance Boss Crankshaft 3.650"
• Mallory for crankshaft balancing
• Manley 4340 Pro series I beam connecting rods 5.933" with 7/16 ARP2000 Rod Bolts
• Manley Extreme Duty Flat Top 2618 Pistons 3.630" Bore
• Total Seal piston rings AP top, napier second 1.2 , 1.2 , 3.0mm
• Wrist Pins 9310 Material .866 X 2.500 x .210 wall
• ARP main studs
• King main and rod bearings
• FFRE Coyote oil squirter block offs
• New block kit (timing cover dowels, rear seal dowels, chain guide dowels, oil galley freeze plugs)

Specifications
