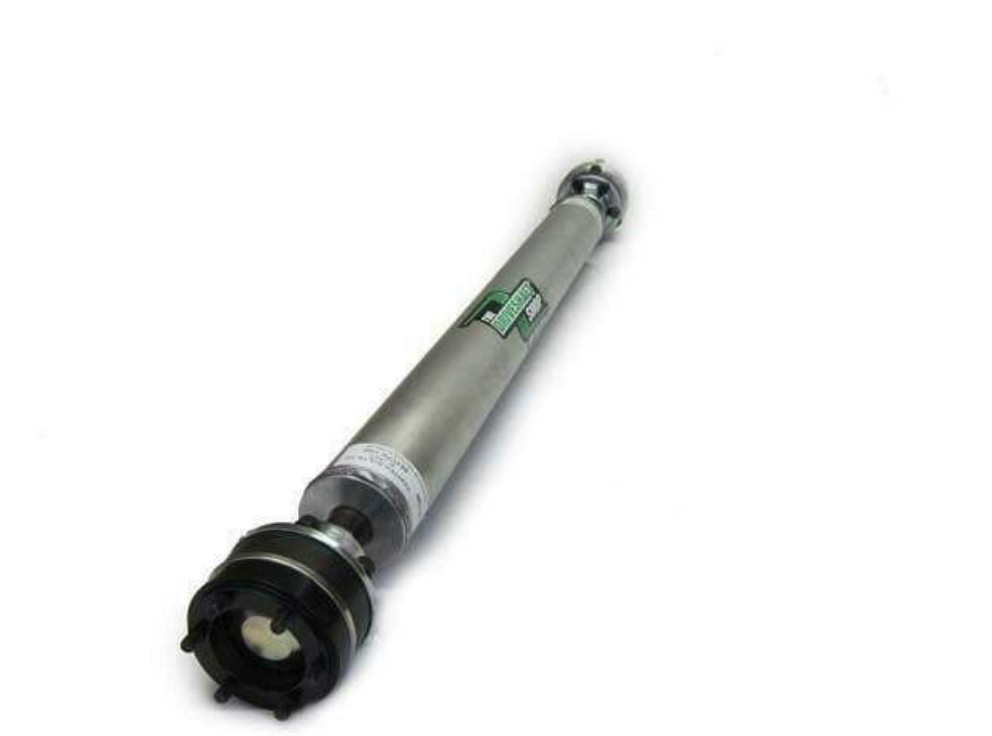

Driveshaft Shop 10R80 10-Speed Auto 3.5" Aluminum 1-Piece CV Driveshaft (2018-2025 Mustang GT & Dark Horse / 2020+ Mach 1) - FDSH52-A

New from The Driveshaft Shop! They have developed a DIRECT FIT rear CV Driveshaft! This new design eliminates the adapter plate at the rear end with a precision ground CV to fit inside the pinion flange just like the factory. This new design sheds weight from adapter plates while increasing power holding ability and drivetrain response. Their Driveshaft will be an athletic upgrade from the factory soft rubber mounted shaft. Now offering solid connections, perfect alignment, and their new CV with chromoly internals / Spicer 1350 U-joint combination to get the power to the ground. Designed to hold 700 ft-lbs of Torque, so even the most extreme engine modifications won't be a problem.

Features:

3.5" diameter aluminum construction
Billet aluminum endcaps
300M Chromoly spline plugs
High-speed precision ground CV joint with chromoly internals. Has twice the range of the previous design
Spicer 1350 series solid U-Joint
Forged aluminum U-Joint flange
700 TQ Rating

Note: Emergency brake cable bracket clearance or relocation may be necessary. Failure to check this clearance may damage the driveshaft and void the Warranty

Additional Notes: Due to the aggressive nature of first gear in the 10R80, it is only recommended to use this DS up to around 700 ft-lbs of TQ.

Note: Cradle Lockout is required / highly recommended.
