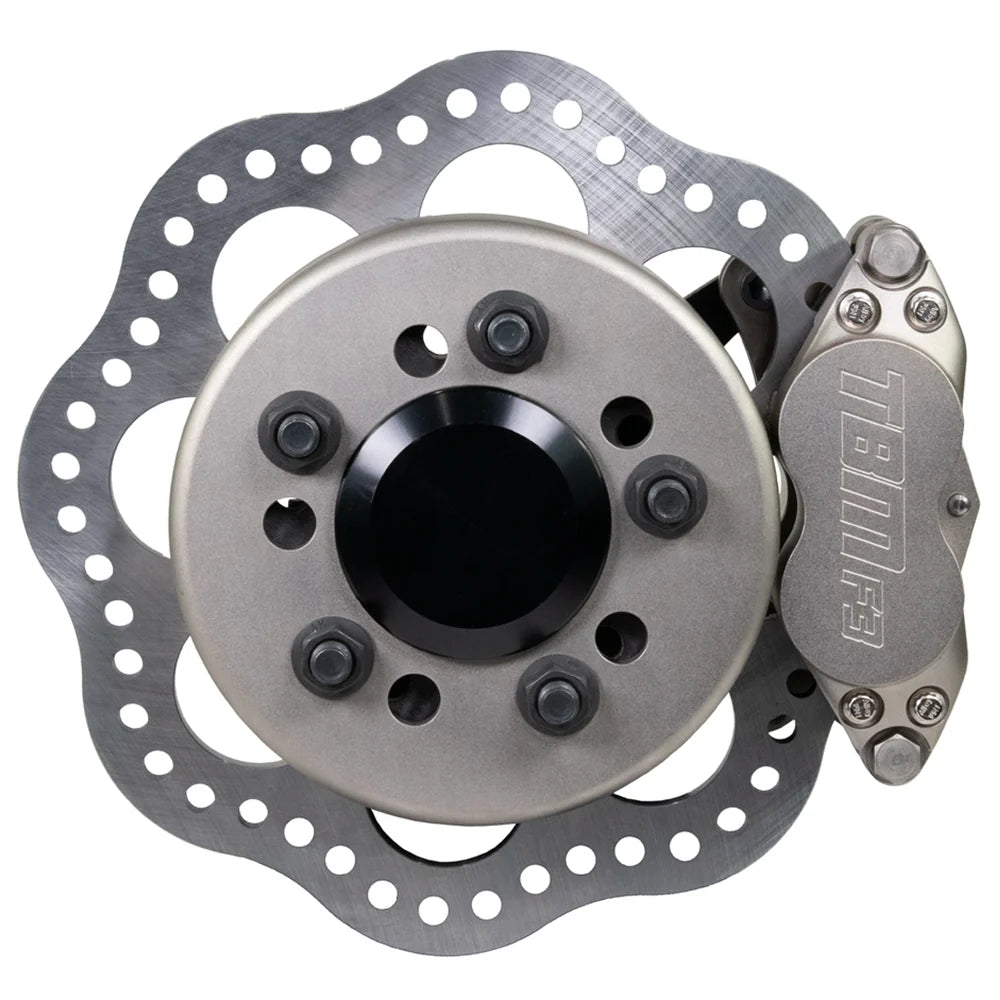

2024-2025 Ford Mustang S650 Rear Drag Racing Brake Kit (Reusing Factory Hubs) - 001-0297-1

2024 Ford Mustang S550 Rear Drag Racing Brake Kit (Reusing Factory Hubs) - 001-0297-1

This kit will not work on Dark Horse or Performance Brake Cars

Instructions: Click Here

Drill Template Instructions: Click Here

Note: This Kit requires usage of an included drill fixture to drill and tap holes in factory spindles for use with supplied bracket. This kit can be purchased separately as well 12-0550. For install/usage instructions on drill fixture: Click Here

Kit Includes:

• F3 4 Piston Calipers  002-0056SSP-1 / 002-0056SSP-2
• (2) Billet Aluminum Rotor Hats 204-0227
• (2) 11.50x.375 Revolution Rotors  3-1150375D
• (2) Mounting Brackets 16-0267-1 / 16-0267-2
• Full Set #1 Compound Standard Brake Pads  6-0102W
• Hardware Kit 011-0297
• Drill Fixture for modifying factory spindles/knuckles
• Kit Weight 22.90

Note: This Kit retains usage of factory ABS functionality, however, we do not recommend utilizing ABS braking functionality with racing brakes as it may cause unpredictable or negative effects on braking performance that can cause inadequate braking and premature pad/rotor wear.

Note: Removal of Factory E-brake required.

Installation of this kit will require 3AN lines that are sold separately.

These clear most 15" drag wheels w/ or w/out beadlock rings.
