15-734 Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race
Description
Description

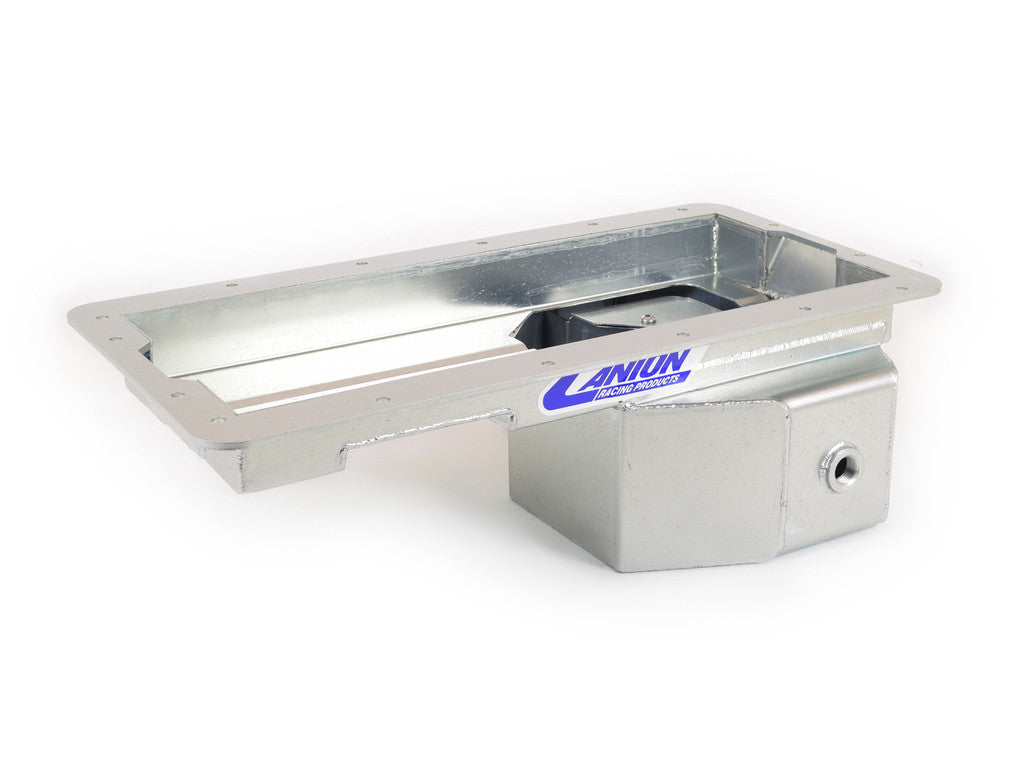

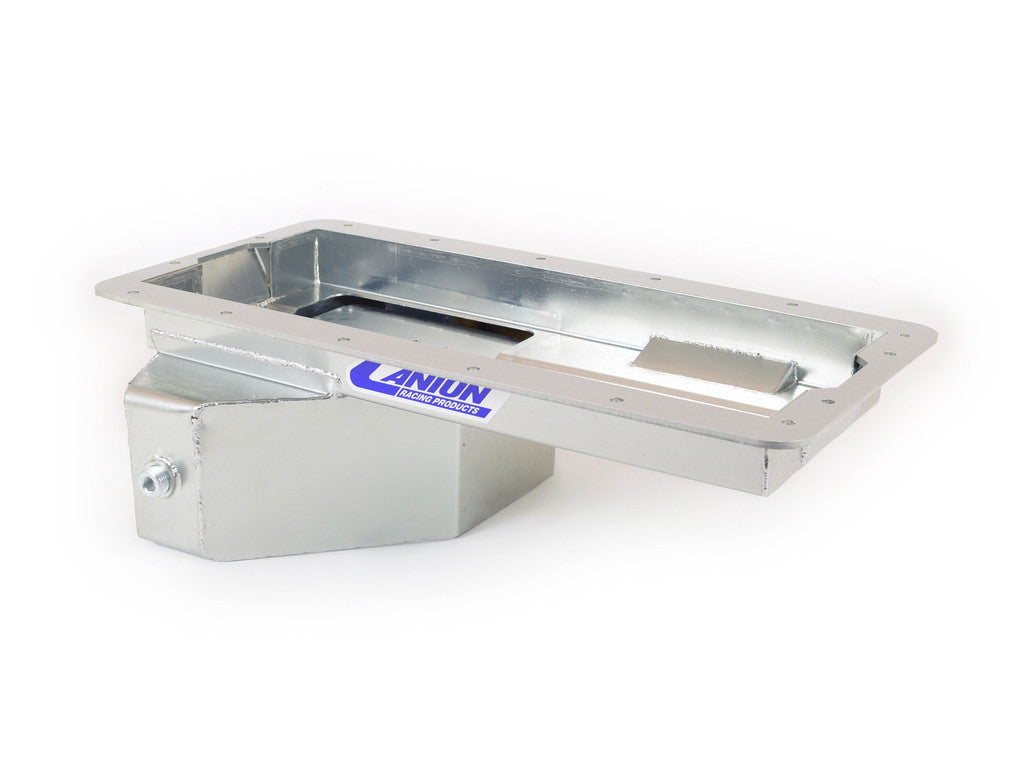

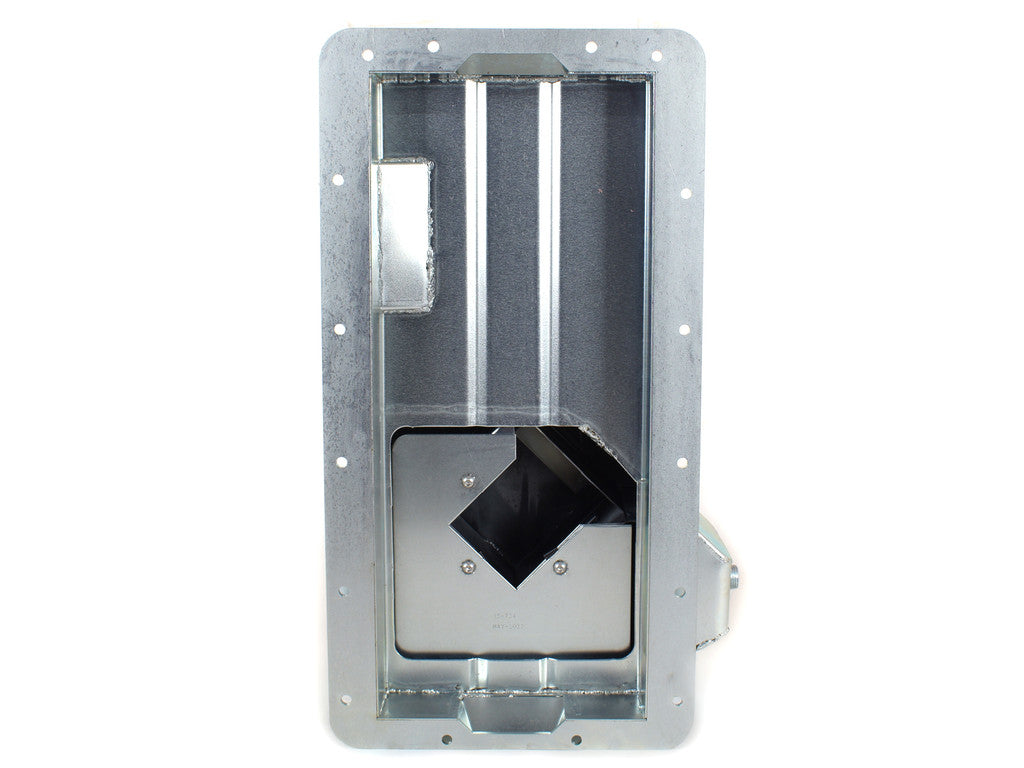

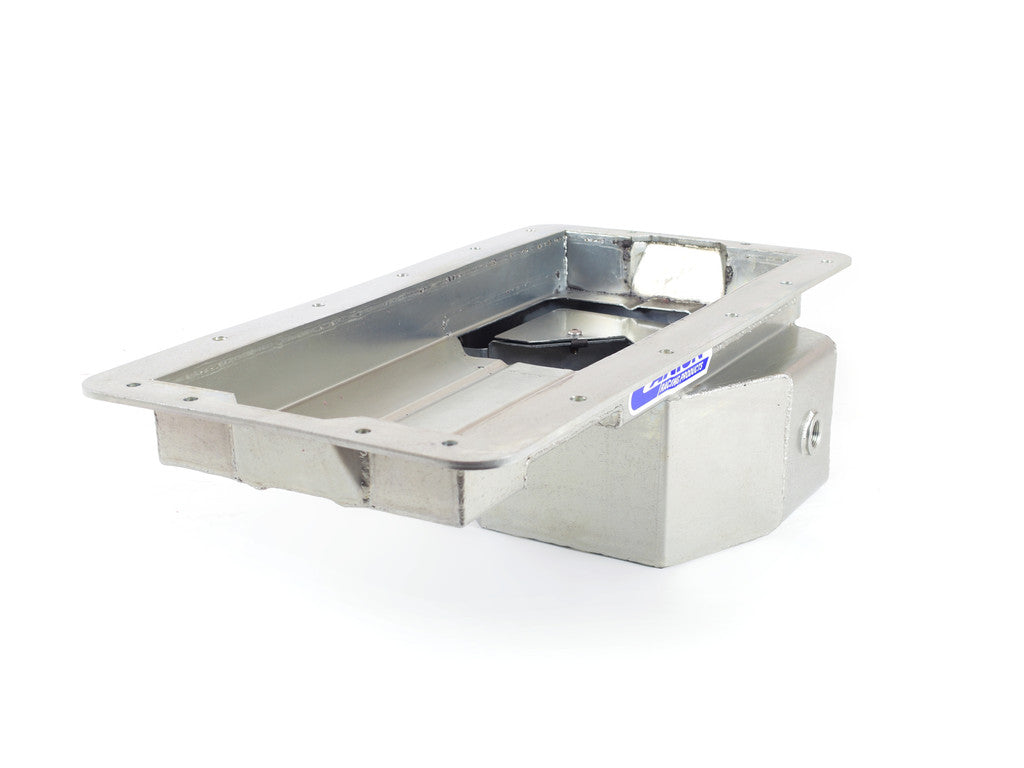

This 15-734 Ford 5.0 Coyote oil pan is designed for 96-04 and 05-12 Mustangs being used in road racing or street/strip applications. Our laser cut rail provides a strong, easy to seal surface. It's rear T sump design offers extra capacity without sacrificing ground clearance and includes a diamond shaped road race baffle assembly with four trap doors for great oil control under heavy driving conditions.
Note: Ford part #BR3Z6622A pickup required.
Oil Pan Features
* 3/16" Lasercut Rail
* Bolt In Anti-Slosh Baffle
* Magnetic Drain Plug
* 7 qt System Capacity
* 1/2" NPT bung for temperature sensor
* 20 mm bung for low oil warning sender (Plug required if sender isn't used)
Recommended Accessories
22-405 - 20mm Plug For Oil Level Sender Port
Gasket:
Stock
Product Tech
Best Results Installing an Oil Pan (PDF)
Ford 5.0 Coyote Oil Pan Installation Guide (PDF)
