RT9119 Lightweight Racing Seat
RT9119 Lightweight Racing Seat is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
RT9119 Lightweight Racing Seat
Description
Description

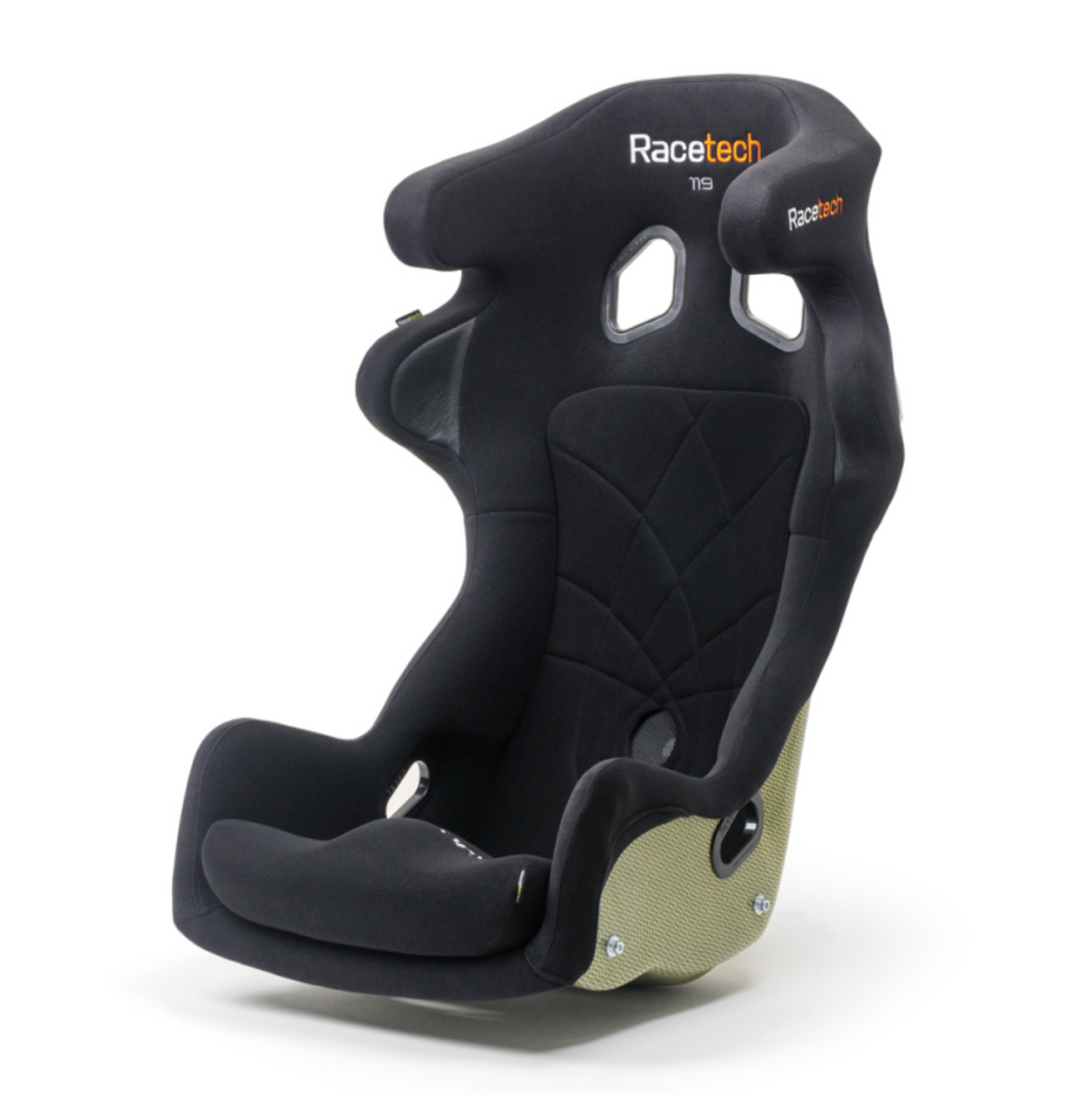

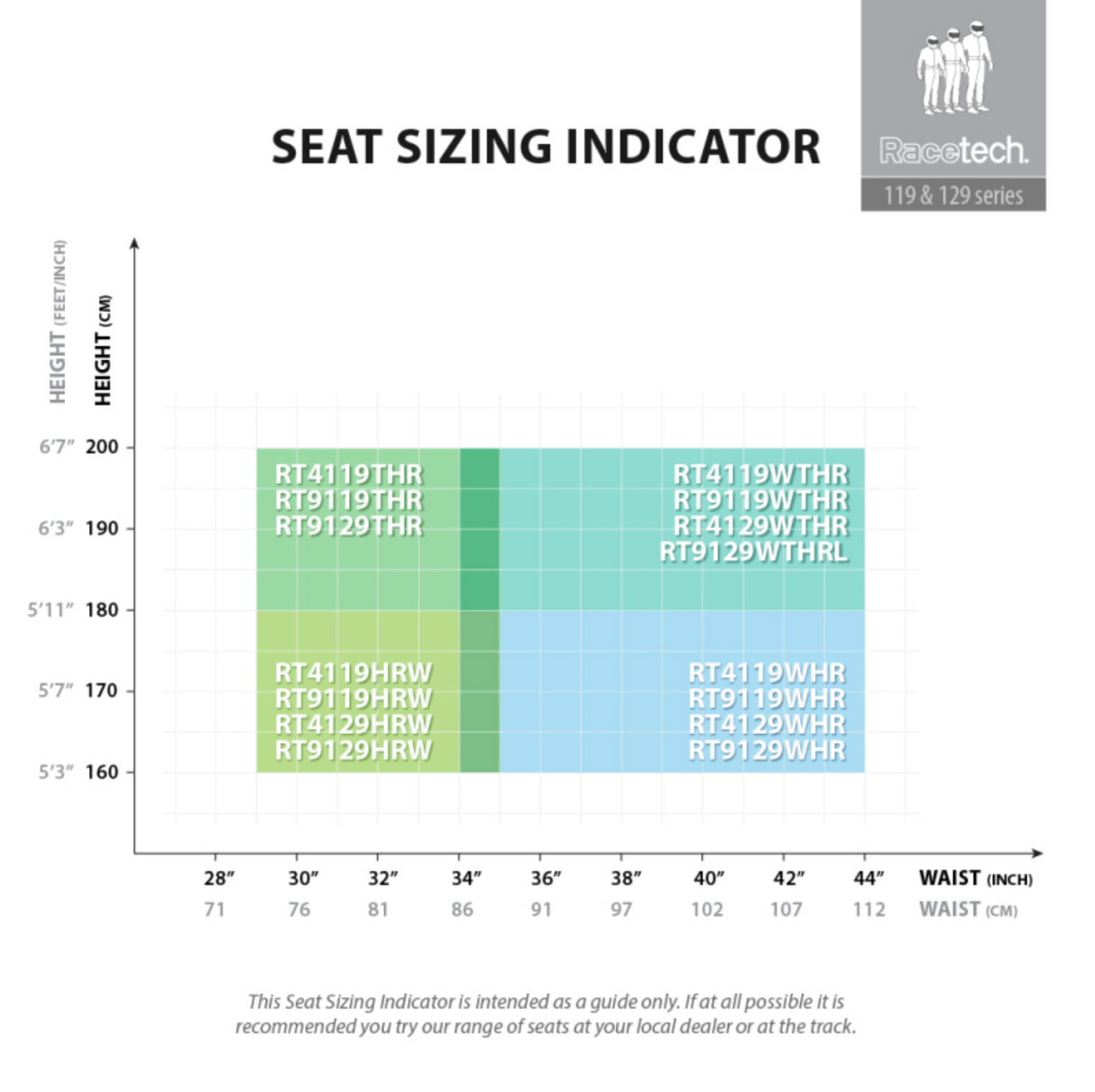

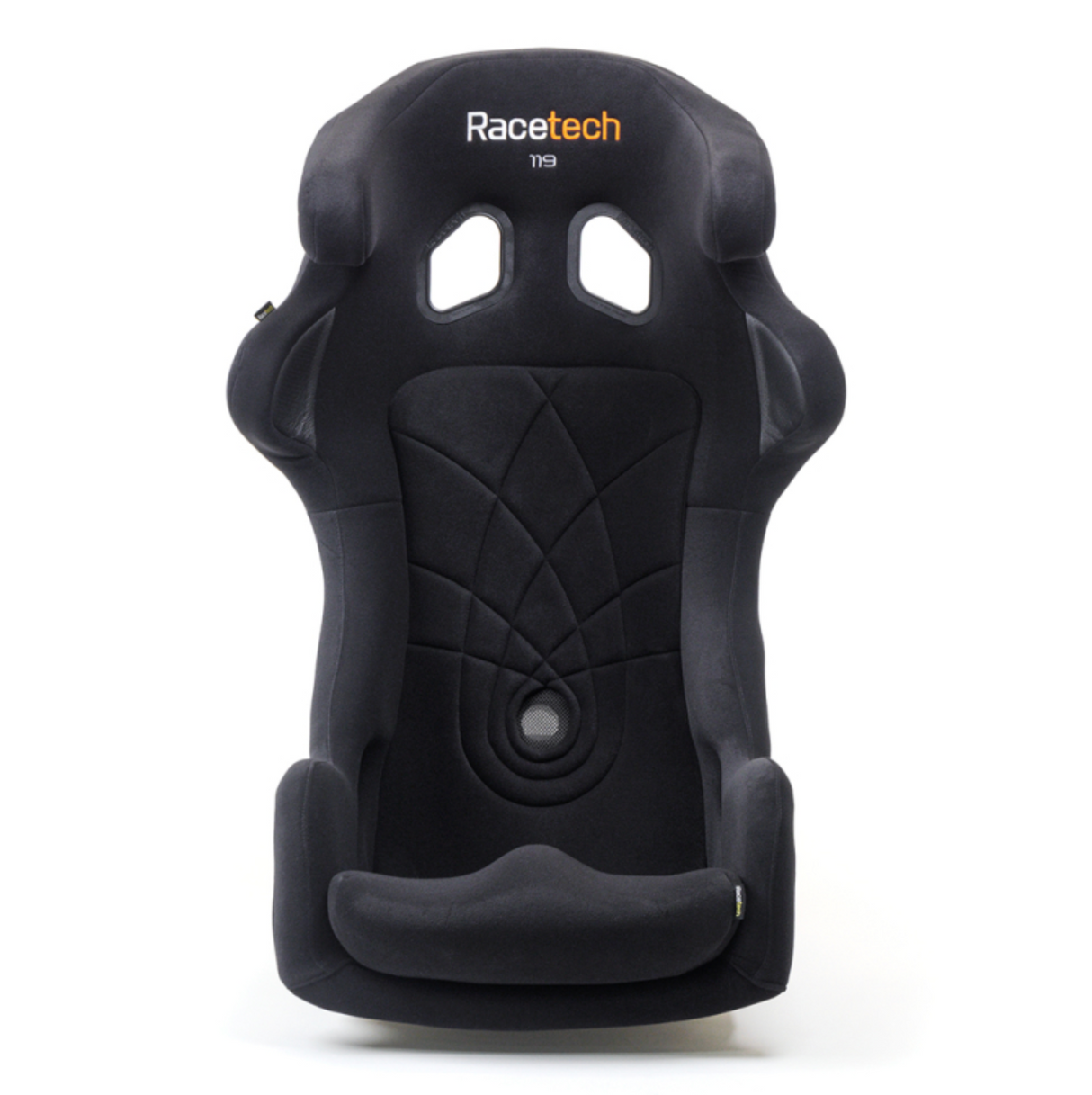

Building upon the successful 129 series, Racetech offers the same ergonomic form and incredible features, but in a lighter and more affordable package. Used by many professional teams at both national and international level. This is the lightweight version, crafted using a precise recipe of carbon and Kevlar hybrid weave to achieve shell weights as little as 9.9lbs (4.5kg)! There are four sizes available; standard, wide, tall and wide-tall. Customize your seat further with low-base cushions or side cushions for support in the thigh area. 9119 series seats (except the WHR) are compliant with FIA 8855-1999 standards *.
Dimensions and Weights:
| Model | Size | Material | FIA | A | B | C | D | E | F | G | H | I | J | K | L | M | Shell Weight | Total Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RT9119HRW | Standard | Kevlar/carbon | 8855-1999 | 24.4 | 22.8 | 14.6 | 17.7 | 18.5 | 36.2 | 24.4 | 19.3 | 13.8 | 30.3 | 22.0 | 28.7 | 15.7 | 9.9 | 14.3 |
| RT9119THR | Tall | Kevlar/carbon | 8855-1999 | 24.4 | 25.2 | 14.6 | 17.7 | 18.5 | 38.6 | 26.8 | 19.3 | 14.2 | 32.7 | 24.0 | 29.1 | 15.7 | 10.1 | 14.6 |
| RT9119WHR | Wide | Kevlar/carbon | None | 26.4 | 22.8 | 16.1 | 19.7 | 18.5 | 36.2 | 24.4 | 19.3 | 14.2 | 30.3 | 22.0 | 28.7 | 17.3 | 10.4 | 14.8 |
| RT9119WTHR | Wide & Tall | Kevlar/carbon | 8855-1999 | 26.4 | 25.2 | 16.1 | 19.7 | 18.5 | 38.6 | 26.8 | 19.3 | 14.2 | 32.7 | 24.4 | 29.1 | 17.3 | 10.8 | 15.4 |
Brackets and Mounting:

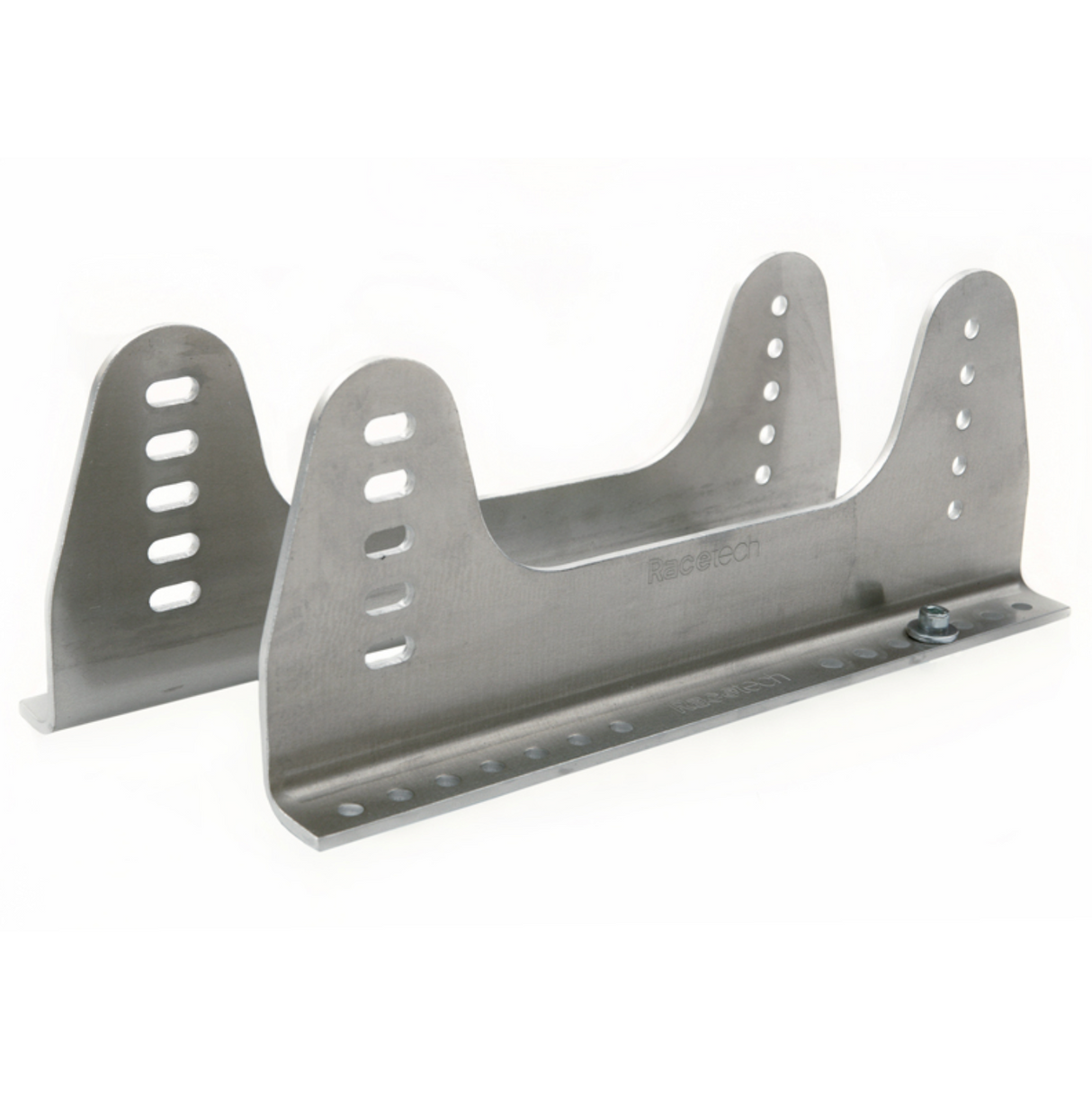

- Side mount to the floor using Racetech RTB1009M 5mm aluminum brackets (please select above when ordering).

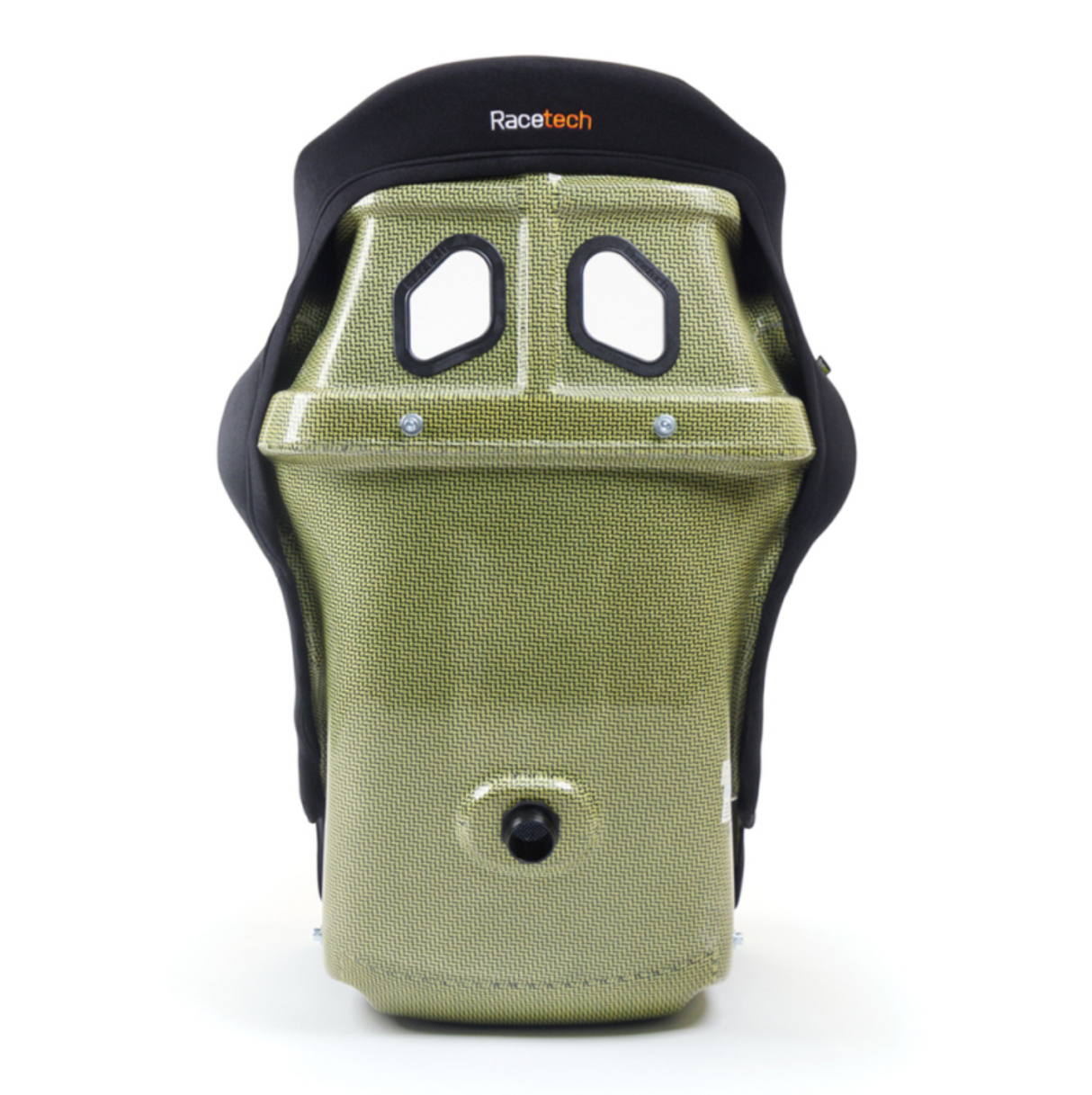

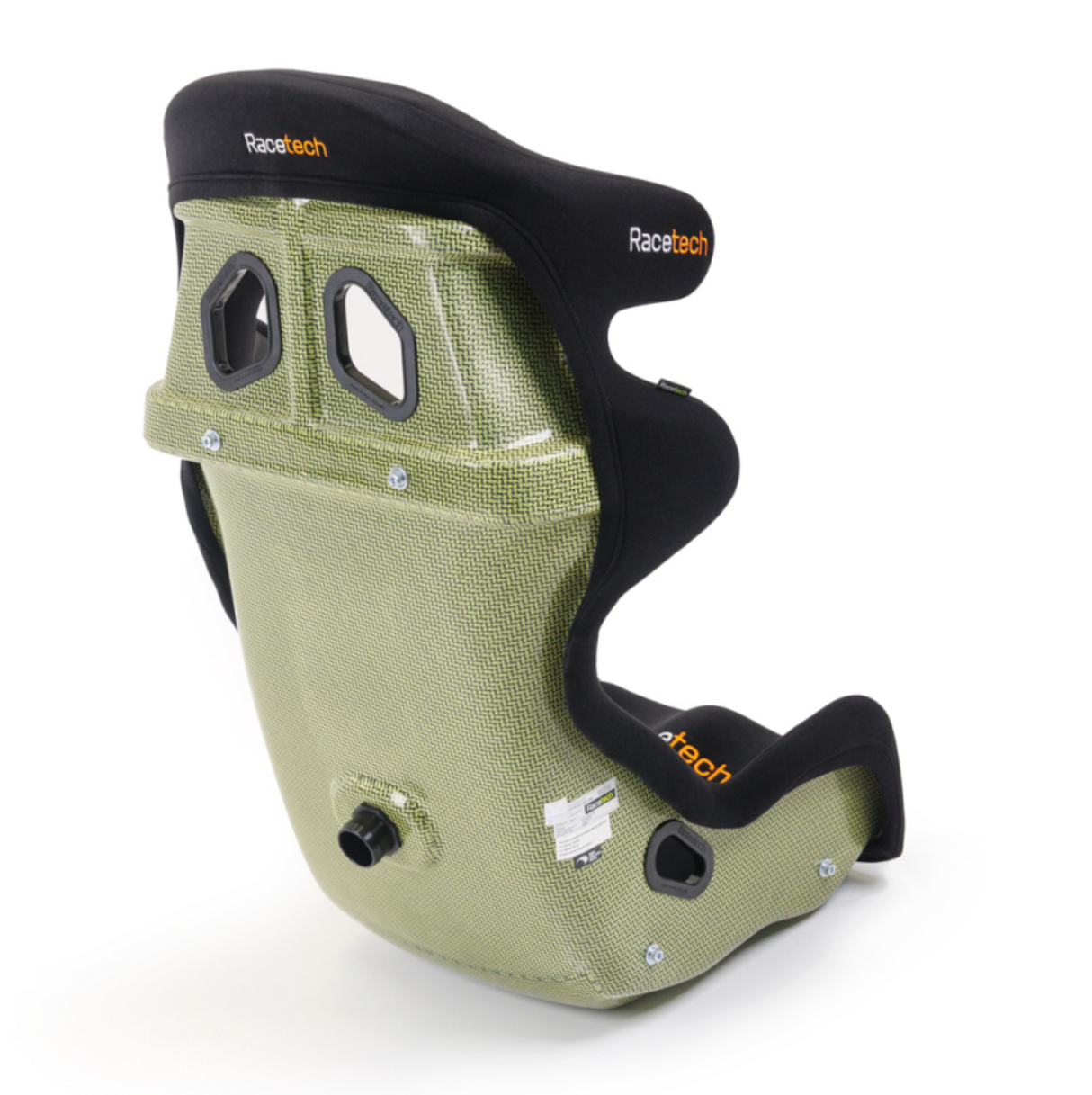

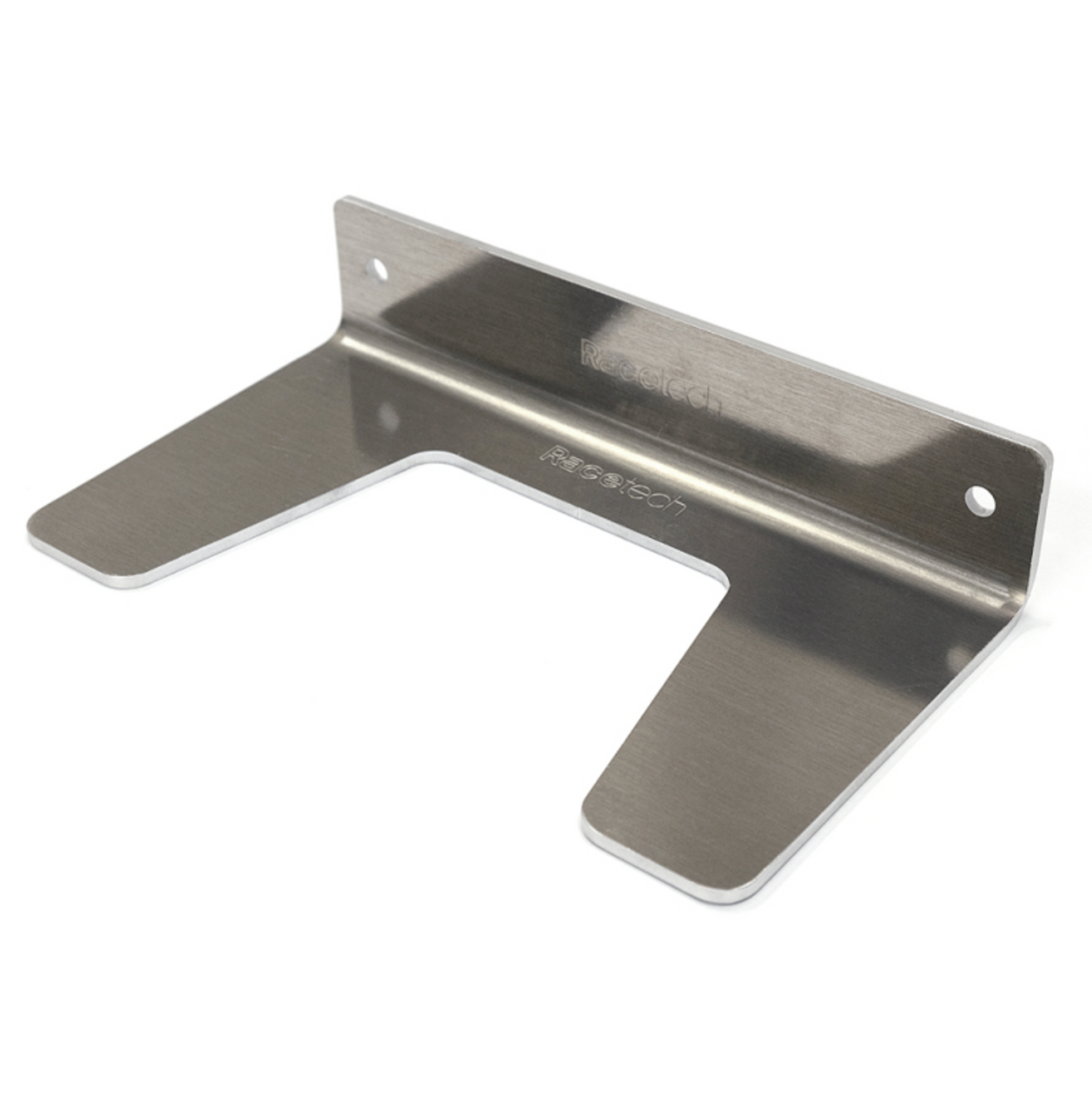

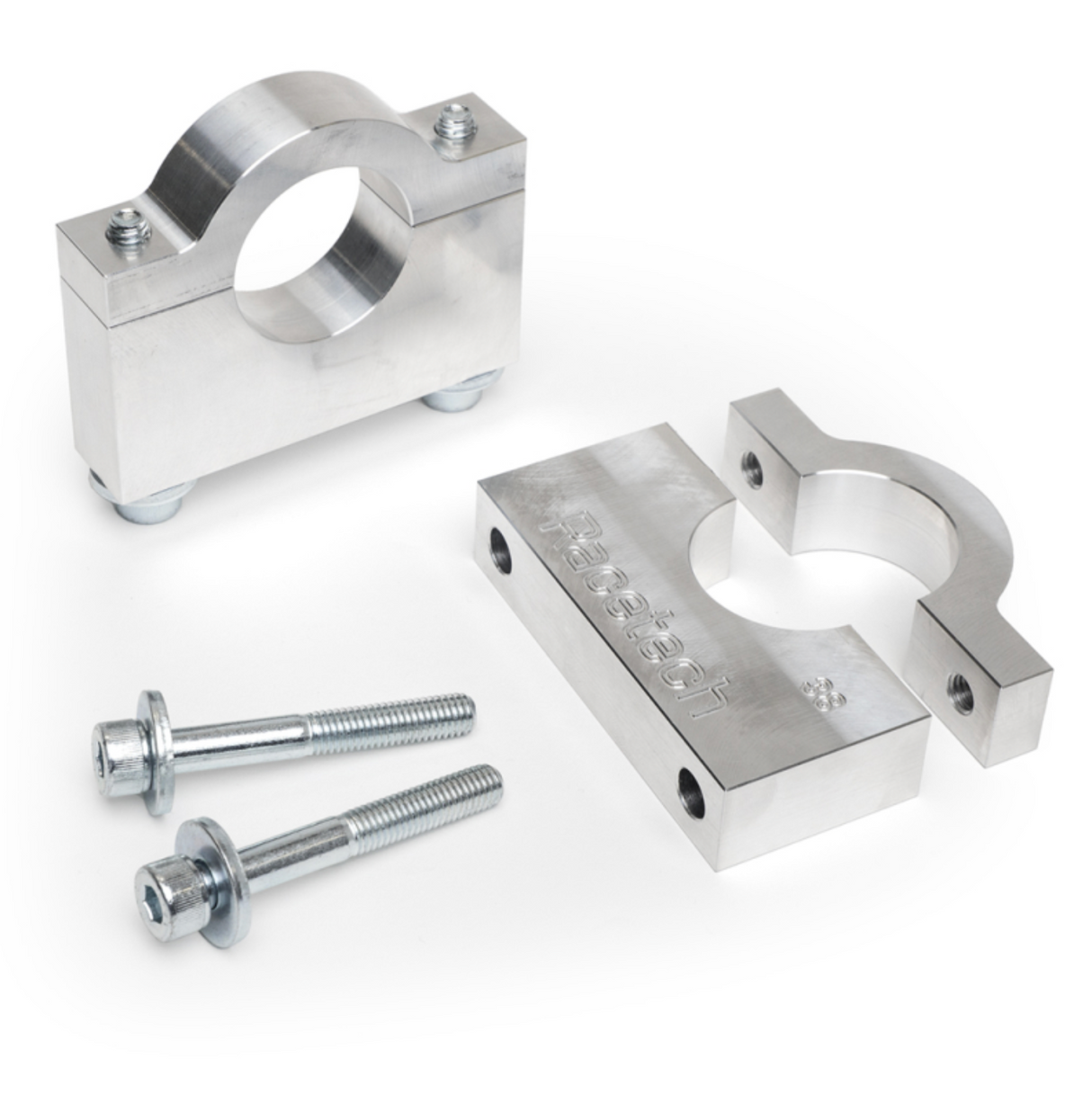

- Back mount using the RTB3115B or RTB2115B in conjunction with RTB2005C. The RTB2115B is a 5mm aluminum bracket that bolts directly to the shoulder beam of the seat. The RTB2005C clamps bolt to the RTB3115B or RTB2115B (once holes have been drilled) and come in 3 variants; either a 11/2 (38mm), 15/8 (41mm) or 13/4 (45mm) ID to suit the rollcage tube diameter in your vehicle. Please select your preferred clamp diameter above when ordering.
* To comply with FIA 8855-1999, the 119 series seats must be back-mounted to the rollcage at shoulder level. Back-mounting can be achieved using parts RTB2115B and RTB2005C, see instructions here. Back-mounting improves seat strength and stability during an impact, increases driver 'feel' and reduces driver fatigue, see the video here.
Images may differ from the actual product; embroidery on the product received may differ to that shown. Contact us if you have any questions.
| Application | |
| Common Applications | National to international-level circuit where weight reduction is important |
| Stock Color / Material | |
| Gel-coat | Clear self-finish |
| Seat Cover | Black fire-retardant fabric |
| Wear Patches | Black perforated leather |
| Technical | |
| FIA Homologation | FIA 8855-1999 Approved (except RT9119WHR) |
| Shell Construction | Kevlar/carbon |
| Shell Weight | From 9.9lbs (4.5kg) |
| Side Mount Hole Centres | 295mm |
| Back Mount Hole Centres | 250mm |
| Bolt Torque (Zinc) | 30Nm / 22 ft lb |
| Sizes | HRW - Standard WHR - Wide THR - Tall WTHR - Wide & Tall |
| Design | |
| Head Restraint | Integrated head restraint |
| HANS Compatible | Yes |
| Harness Compatibility | Up to 6-point harness |
| Large Harness Guides | Yes |

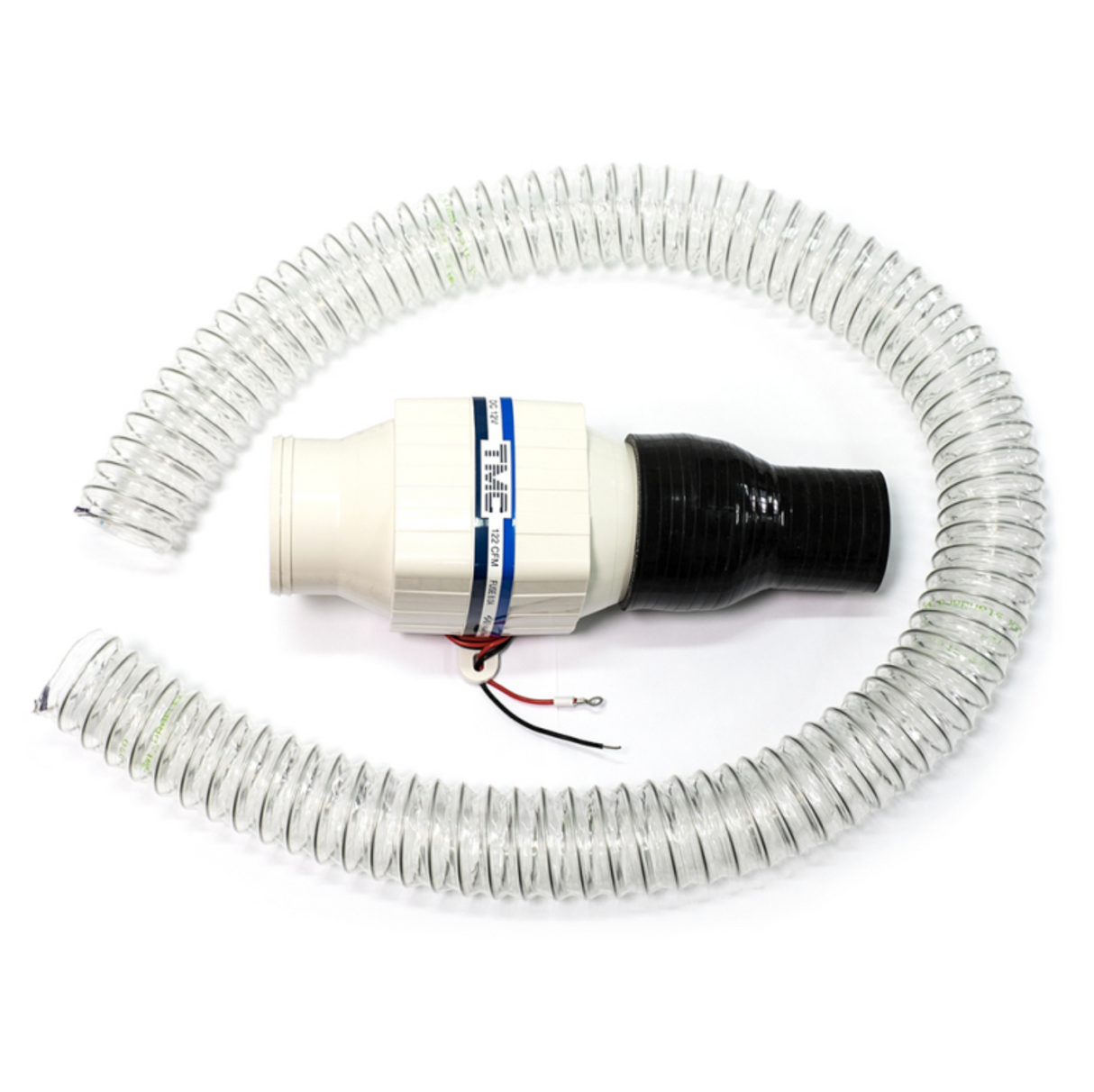

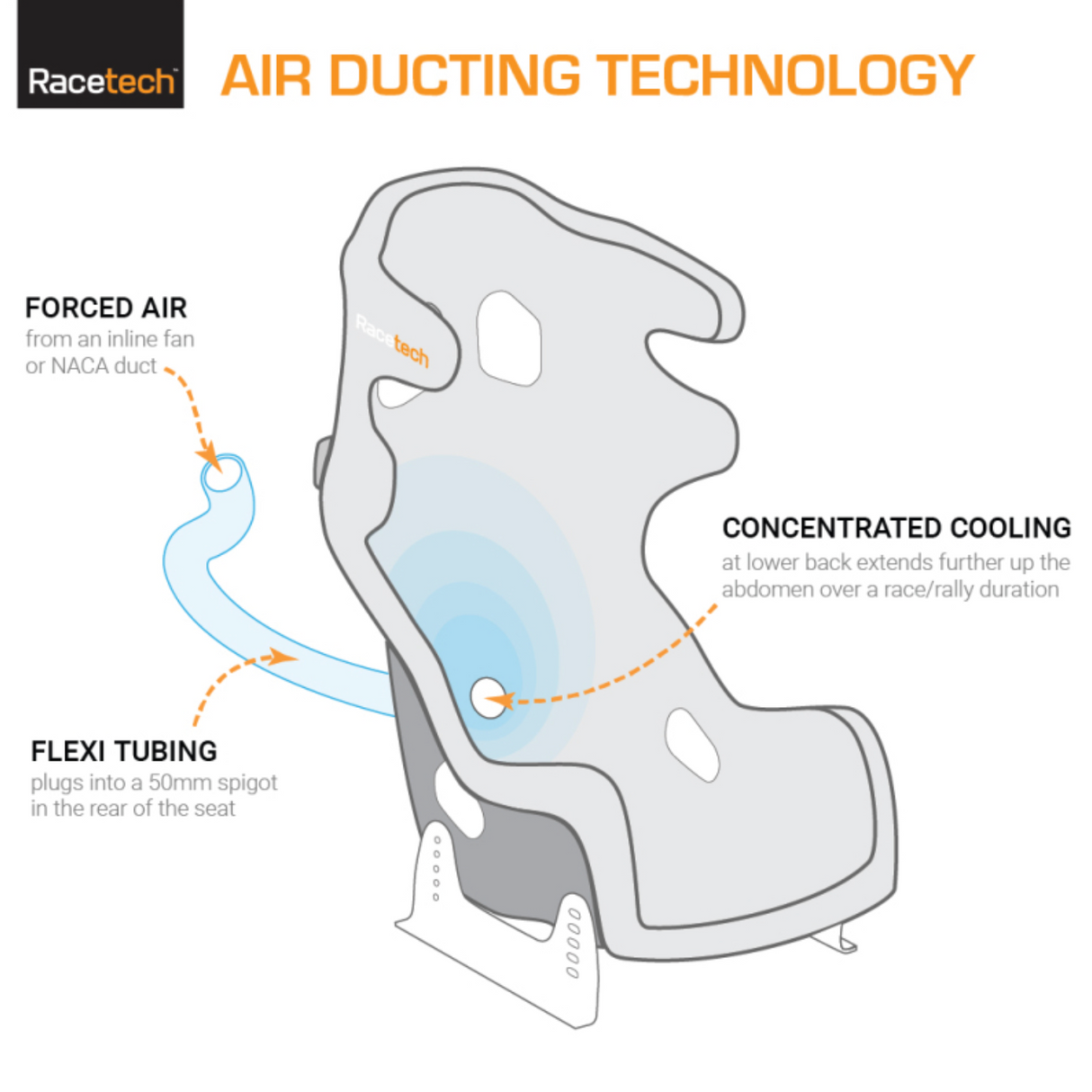

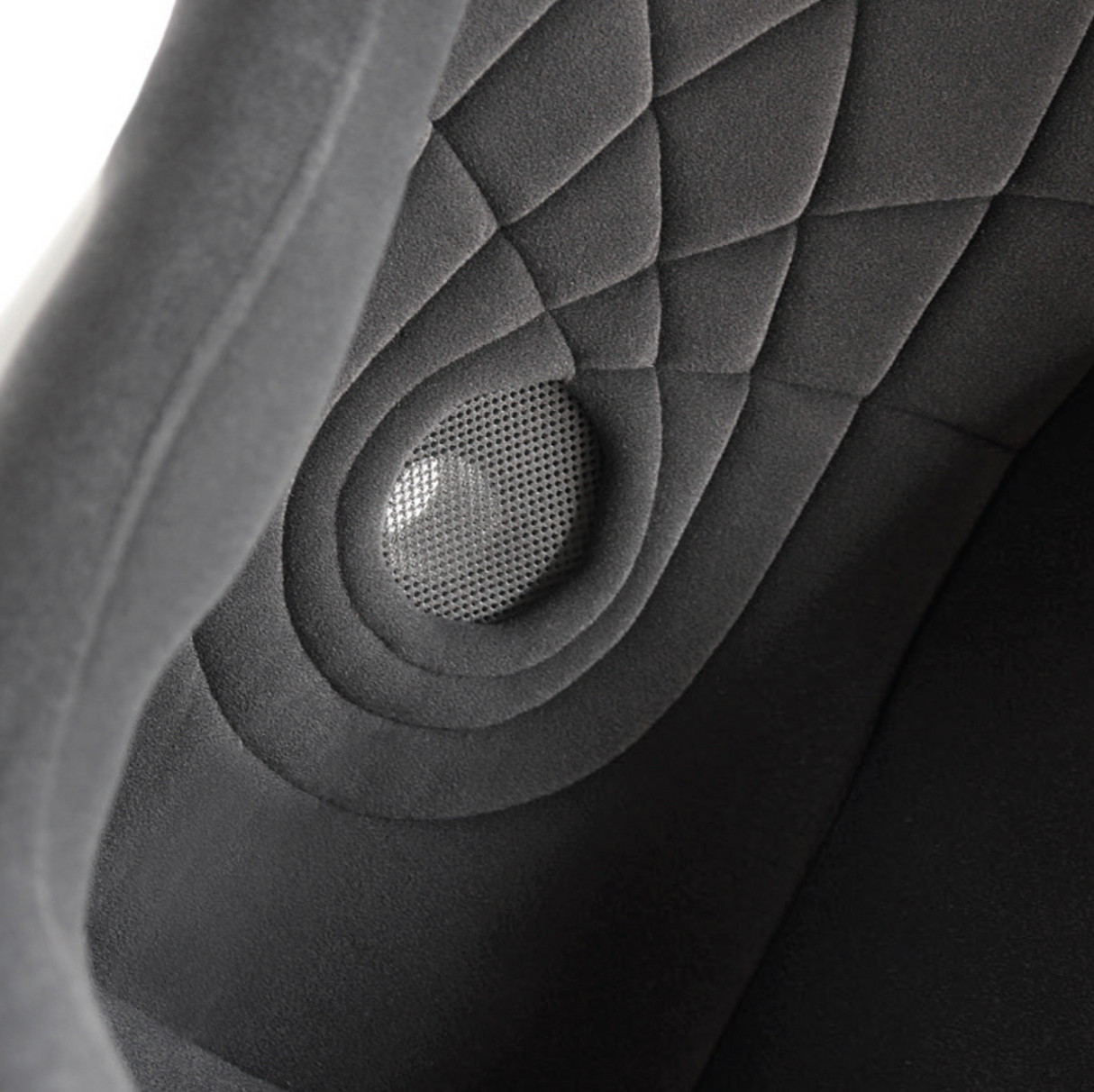

| Air Ducting | Yes - vented to the driver's lower back |
| Back-mount Compatible | Yes |
| Back-mount Required for FIA Homologation | Yes (except RT9119WHR) |
